possible routing using disused Line 3
View attachment 95628
Piggybacking on your proposal:



With the ways things are going, we will get RER and fare integration/reform before anything is built to SCC...

Repurposed #6 for a NE Scarborough/Malvern LRT line using rail ROW - full grade-separation from Kennedy to Malvern; they can do an on-street loop within Malvern if needed.

Yes, this is a fantasy because it will require the use of CP's corridor.


Attachments

  • Untitled2.png
    536.1 KB · Views: 188
Last edited:

bill r

New Member
Member Bio
Joined
Feb 9, 2016
Messages
37
Reaction score
4
Plan B
(update to SmartTrack 2.0
http://urbantoronto.ca/forum/threads/transit-fantasy-maps.3005/page-292#post-1109076 )


Convert the GO Stouffville line to Electric Multiple Units (EMU) with 3-4 minute headways. EMU’s are like subway cars that run on railroad tracks. They accelerate and stop much more quickly than locomotive/coach trains. Metrolinx is selecting EMU’s because they are half the operating cost of locomotive/coach trains.


From the Stouffville line the route goes along the Lakeshore (4th track installed), to Eastern Avenue where it turns on to King Street. Four railroad lines are laid on King Street providing a bypass track for the EMU’s. The tracks meet up with the Union Pearson Express (UPX), which is then salvaged by converting it to EMU and add a few more stations and serve north-west Toronto.


It will be necessary to install bypass tracks on King St to provide sufficient train throughput through the downtown to feed the two suburban lines. The tracks are on the surface is the most economical. A better solution would be to elevate the tracks but apparently this is not aesthetically satisfactory. The best solution would be to place the tracks underground.


This route addresses the downtown section of the Downtown Relief Project. The upper portion would be addressed with a station at Pape and Gerrard. Likely an LRT route replacing the Don Mills bus.


The Stouffville and UPX lines provide backbone service for a hub and spoke system. The Sheppard LRT meets the Stouffville line.The Steeles, Finch, Agincourt, Lawrence stations will significantly shorten bus routes in Scarborough. Most Scarborough bus routes will run east/west to feed the Stouffville line. As the east/west bus routes run faster than north/south routes transit times will be shortened. UPX and Stouffville provide speedy service considering the distances they cover.


Rapid transit on King Street provides much needed service (Liberty Village) and an alternate east/west corridor alternative to the Bloor subway.


The lines provide a grid service to Toronto. This relieves the load at Yonge/Bloor. The route along King St also relieves the load at Union Station.




ssiguy2

Senior Member
Member Bio
Joined
Feb 3, 2010
Messages
3,207
Reaction score
962
EMU's that are similar to subway cars {basically just subway trains running on standard rail track with overhead catenary power supply} are VERY common throughout the world. Toronto closest subway neighbour, Cleveland, uses such trains. All of the Delhi, Barcelona, and Sao Paulo systems do as does most of Tokyo's and Hong Kong's as well as many other European and Chinese systems. Every subway manufacturer makes them as off-the-shelf vehicles.

Catenary subways are also superior to standard 3rd rail subways, when running outside, in both reliability and safety which is why they are more frequently used in such capacities.

More reliable due to flooding or snow/ice can greatly effect 3rd rail operations unlike catenary. Safer because when using current rail corridors for their operation which many do, it mean that work can continue on other adjacent rail tracks without fear of electrocution. When, for example, you have 4 track corridors yet 2 are 3rd rail and the other 2 catenary or non-electric, it is VERY dangerous to have people work on/fix the 2 other tracks while the 3rd rail system is still running. This is one of the reasons 3rd rail systems that use current rail corridors do so almost exclusively with elevation or at a minimum very high track segregation walls to prevent electrical accidents.

For all of the GO RER system, I think catenary subways are superior even to EMUs.


muller877

Senior Member
Member Bio
Joined
Jun 14, 2011
Messages
1,689
Reaction score
760
Plan B
(update to SmartTrack 2.0
http://urbantoronto.ca/forum/threads/transit-fantasy-maps.3005/page-292#post-1109076 )


...
It will be necessary to install bypass tracks on King St to provide sufficient train throughput through the downtown to feed the two suburban lines. The tracks are on the surface is the most economical. A better solution would be to elevate the tracks but apparently this is not aesthetically satisfactory. The best solution would be to place the tracks underground.
....
Rapid transit on King Street provides much needed service (Liberty Village) and an alternate east/west corridor alternative to the Bloor subway.


The lines provide a grid service to Toronto. This relieves the load at Yonge/Bloor. The route along King St also relieves the load at Union Station.

Surface heavy rail lines on King? Are you joking?

- How does traffic cross?
- Noise for the 100,000+ people that live or work along King
- Safety of pedestrian crossings?


Translude15

Frank the Tank
Member Bio
Joined
Aug 12, 2008
Messages
646
Reaction score
245
Surface heavy rail lines on King? Are you joking?

- How does traffic cross?
- Noise for the 100,000+ people that live or work along King
- Safety of pedestrian crossings?

Collateral damage. Metrolinx must run the trains at the expense of pedestrians/residents.


innsertnamehere

Superstar
Member Bio
Joined
Mar 8, 2010
Messages
14,904
Reaction score
10,110
I'd love to see a 12 car GO train plow through a throng of jaywalking pedestrians at King and Bay.

Oh, and the financial core station would provide connections to both the St Andrew and King Stations at once! bonus! The downtown street grid will be shut down for 5 minutes, every 15 minutes, however, to allow for the trains to pass through.

The trains better watch for the drunks on King West on friday nights. They may throw their smokes puitine at the trains.

They better make sure the train goes around all those left turners at bathurst too.. takes quite a few light cycles to get through there most days.

Last edited:

Leo_Chan

Senior Member
Member Bio
Joined
Nov 13, 2016
Messages
3,201
Reaction score
1,956
Location
Richmond Hill
You guys think they actually put a GO train ROW in the middle of King Street? The more likely scenario is demoshing ALL the buildings on the North or South side of King in order to place double tracks. Cars need to have priority right?


aquateam

Active Member
Member Bio
Joined
May 26, 2014
Messages
841
Reaction score
663
This is my fantasy map(s). I was reading the Waterfront Reset report and it struck me how convoluted and confused all the different schemes were for trying to add a waterfront streetcar network, and how they didn't take advantage of a possible reorganization of the streetcar network due to the presence of the DRL. This is my response for how the waterfront network could be laid out in a way that makes sense to me.

This (http://www1.toronto.ca/planning/3-rightofway-widths.pdf) was used in planning where ROWs were put for "Enhanced Streetcars" or for where "LRTs" were placed.

Downtown



I envision 3 new routes:

515 - DUFFERIN
Route:

-Follows existing 29 Dufferin route to Dufferin gates

Grade separation:
-sufficient ROW for reserved lanes north of Lawrence

Benefits:
-upgrades busiest surface route to increase capacity/comfort

518 - BREMNER
Route:

-Starts from DRL station, goes south to dufferin gates, east to service Exhibition, then goes under the Gardiner -> Fort York -> Bremner -> Union station


Grade separation:
-from Fort York east, descends into a cut-and-cover tunnel (room for stations has been provisioned for in buildings along the route)

Benefits:
-provides long planned for Bremner LRT
-services SouthCore and big events (CNE grounds, BMO fields, Skydome)

516 - BROADVIEW
Route:

-South from Broadview station to Unilever DRL station. Follows extension of Broadview avenue south to commissioners
-West from there to Cherry, then up Cherry ROW to terminate at Sumach DRL station.

Grade separation:
-South and West of Unilever DRL station, entire route is in separate ROW

Benefits:
-Serves Unilever development (like Southcore, new CBD planned à la Canary Wharf in London)
-people heading downtown would transfer at DRL, so route isn't indirect compared to other schemes
-provides direct route to subway for people in the portlands

509 - HARBOURFRONT (The naming is retained but the route is different)
Route:
-West from Leslie along Commissioners, north on Cherry, west on Queen's Quay, west on fleet, terminates at Marilyn Bell Park.
-Serves entire waterfront from east to west

Grade separation:
-Entire line in ROW

Benefits:
-East/West transit link for waterfront

Toronto West



Bloor-Danforth line has been extended one station west to Cloverdale take advantage of the Cloverdale lands being offered, to allow space for a massive bus terminus with direct access to the 427. It is the logic end point for Dundas Street BRT (not pictured).

One new route:
517 - Queensway
Route:

-West from DRL Sunnyside station in Queensway ROW
-Continues along Queensway until Sherway gardens, loops at Sherway gardens

Grade separation:
-Entire route in separate ROW
-Underground connection with DRL station
-Depending on redevelopment of Sherway, above/below grade station at terminus

Advantages
-Promotes TOD in undeveloped "Avenue" without higher order transit
-Strong anchors

508 Lakeshore

This route now terminates at Sunnyside DRL station, so there is no more awkward transfer point at Humber bay between Lakshore and Queen. I found it silly how all the different EAs for WWLRT look at ways to get across the Gardiner, onto Lakshore, etc., when it makes much more sense to truncate it at the DRL and let them either A) transfer to the subway B) transfer to GO or C) transfer to the 504, which is in a transit mall through downtown.
Because the line is much shorter and is in a ROW for its entire length, service should be much more frequent and headways better managed.

Toronto North West



Salient Points:
  • Dufferin upgrade to streetcar, as described above, to support intensification of corridor. Separate ROW north of Lawrence.
  • 512 St. Clair ROW extended west to Scarlet Road and then south west along Dundas to terminate at Kipling station, to support the 6 point redevelopment.
  • Jane LRT, rather than continuing south from Eglinton (where ROW constrains means it would have to be buried) operates as a branch of the Eglinton LRT (half of the trains from Mount Dennis continue west to the airport, half go north). Jane LRT terminates at TYSSE station Pioneer village at Steeles.
  • DRL is extended north from Keele to Mount Dennis, providing service to the Junction and reactivated cross-town RER line in the process.
  • Sheppard subway is continued west to Sheppard west station, where it interlines. Southbound from Vaughn Centre, half of the trains would go east at Sheppard towards Don Mills and the other half would continue downtown. This extension has the added operational benefit of making the Wilson Yards accessible to the Yonge line.
  • Finch West LRT is extended east to terminate at Yonge & Finch. It's extended south and west to the airport via Rexdale (intersecting Malton GO).
  • Eglinton West LRT is extended to the airport, with a maximum of grade separations. Connection to Missisauga transitway not shown.


Attachments

  • Toronto_north_west.png
    707.2 KB · Views: 372
  • Toronto_west.png
    391.5 KB · Views: 307
  • Toronto_downtown.png
    516.9 KB · Views: 454
  • 509_HARBOURFRONT.png
    22.5 KB · Views: 265
  • 518_BREMNER.png
    14 KB · Views: 227
Last edited:

adrianaliu

Active Member
Member Bio
Joined
Dec 11, 2014
Messages
167
Reaction score
120
Location
ur house

for me extending line 2 to hurontario is just as unreasonable as extending it to scarborough, id rather see those resources go to extending the releif line west, line 2 to cloverdale and line 1 to steeles. I like the use of the hydro corridor in etobicoke and the rail corridor from kipling to long branch, but that can wait for now. the east bayfront lrt should be built as a regular local surface streetcar route in its own ROW from union to the port lands or leslie barns, not as a rapid transit route.


WislaHD

Senior Member
Member Bio
Joined
Sep 21, 2013
Messages
9,194
Reaction score
7,405
Location
Midtown Toronto
This is my fantasy map(s). I was reading the Waterfront Reset report and it struck me how convoluted and confused all the different schemes were for trying to add a waterfront streetcar network, and how they didn't take advantage of a possible reorganization of the streetcar network due to the presence of the DRL. This is my response for how the waterfront network could be laid out in a way that makes sense to me.

This (http://www1.toronto.ca/planning/3-rightofway-widths.pdf) was used in planning where ROWs were put for "Enhanced Streetcars" or for where "LRTs" were placed.

Downtown

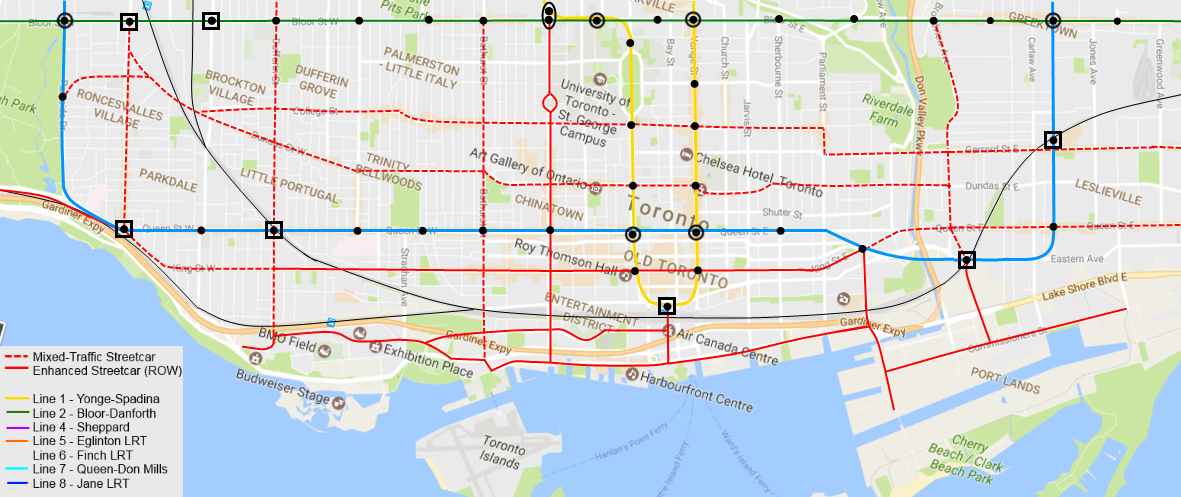

View attachment 101242

I envision 3 new routes:

515 - Dufferin
Route:

-Follows existing 29 Dufferin route to Dufferin gates
-Turns east to service Exhibition, then goes under the Gardiner -> Fort York -> Bremner -> Union station

Grade separation:
-sufficient ROW for reserved lanes north of Lawrence
-from Fort York east, descends into a cut-and-cover tunnel (room for stations has been provisioned for in buildings along the route)

Benefits:
-upgrades busiest surface route to increase capacity/comfort
-provides long-dreamt-of Bremner LRT
-services SouthCore and big events (CNE grounds, BMO fields, Skydome)

516 - Broadview
Route:

-South from Broadview station to Unilever DRL station. Follows extension of Broadview avenue south to commissioners
-West from there to Cherry, then up Cherry ROW to terminate at Sumach DRL station.

Grade separation:
-South and West of Unilever DRL station, entire route is in separate ROW

Benefits:
-Serves Unilever development (like Southcore, new CBD planned à la Canary Wharf in London)
-people heading downtown would transfer at DRL, so route isn't indirect compared to other schemes
-provides direct route to subway for people in the portlands

509 - Harbourfront (The naming is retained but the route is different)
Route:
-West from Leslie along Commissioners, north on Cherry, west on Queen's Quay, west on fleet, terminates at Marilyn Bell Park.
-Serves entire waterfront from east to west

Grade separation:
-Entire line in ROW

Benefits:
-East/West transit link for waterfront

Toronto West

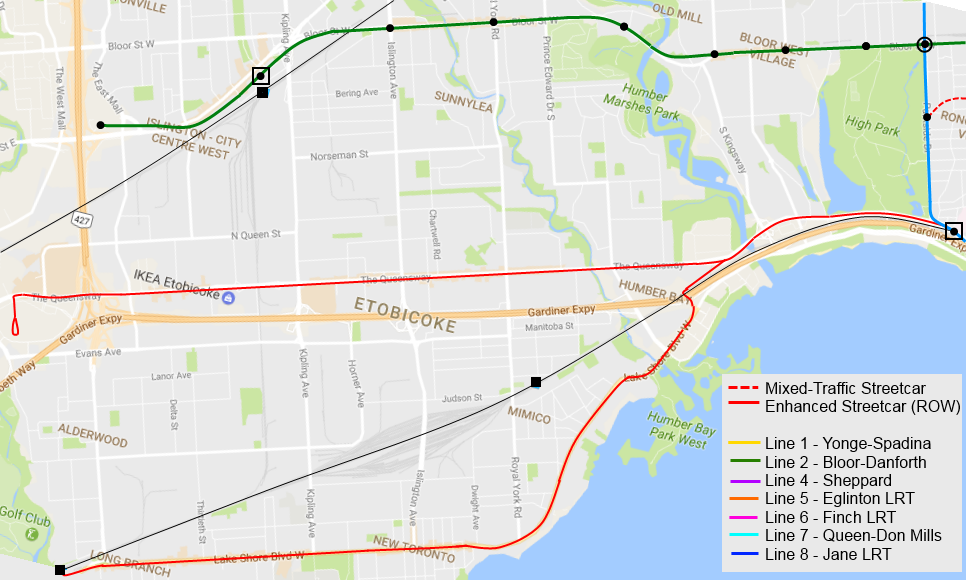

View attachment 101241

Bloor-Danforth line has been extended one station west to Cloverdale take advantage of the Cloverdale lands being offered, to allow space for a massive bus terminus with direct access to the 427. It is the logic end point for Dundas Street BRT (not pictured).

One new route:
517 - Queensway
Route:

-West from DRL Sunnyside station in Queensway ROW
-Continues along Queensway until Sherway gardens, loops at Sherway gardens

Grade separation:
-Entire route in separate ROW
-Underground connection with DRL station
-Depending on redevelopment of Sherway, above/below grade station at terminus

Advantages
-Promotes TOD in undeveloped "Avenue" without higher order transit
-Strong anchors

508 Lakeshore

This route now terminates at Sunnyside DRL station, so there is no more awkward transfer point at Humber bay between Lakshore and Queen. I found it silly how all the different EAs for WWLRT look at ways to get across the Gardiner, onto Lakshore, etc., when it makes much more sense to truncate it at the DRL and let them either A) transfer to the subway B) transfer to GO or C) transfer to the 504, which is in a transit mall through downtown.
Because the line is much shorter and is in a ROW for its entire length, service should be much more frequent and headways better managed.

Toronto North West

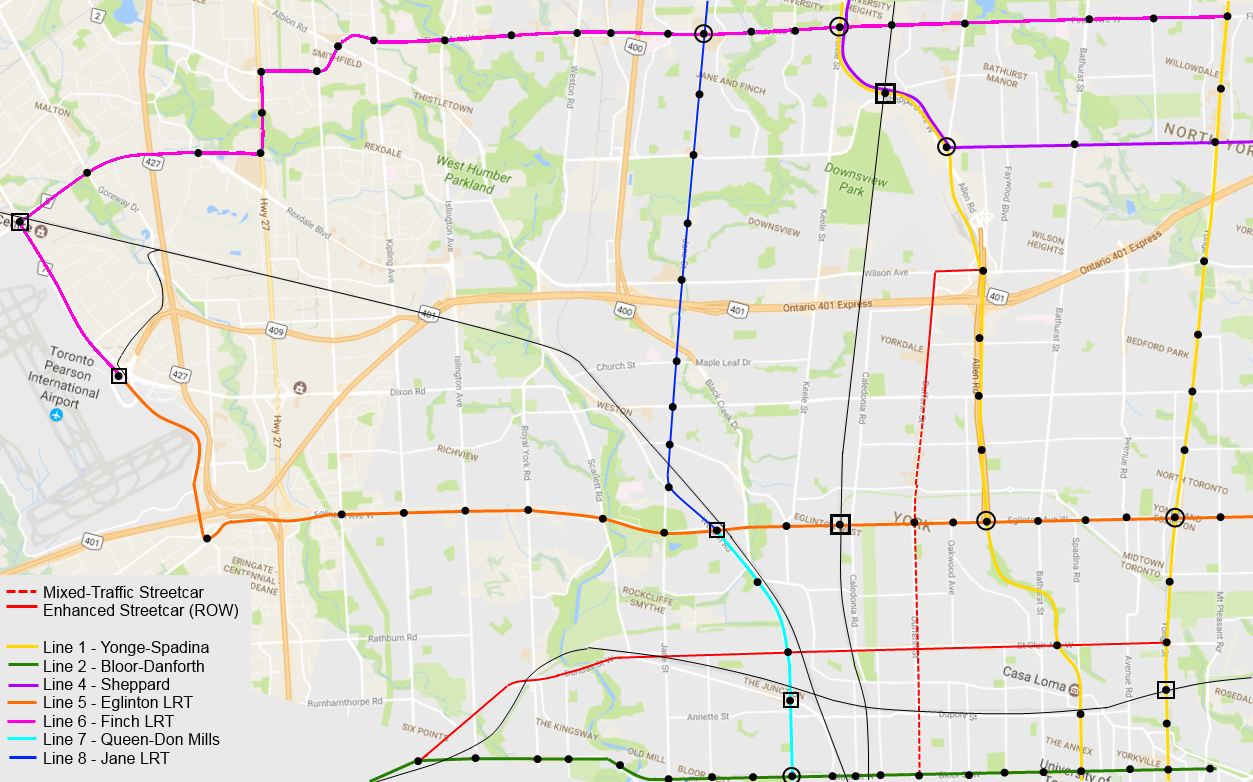

View attachment 101240

Salient Points:
  • Dufferin upgrade to streetcar, as described above, to support intensification of corridor. Separate ROW north of Lawrence.
  • 512 St. Clair ROW extended west to Scarlet Road and then south west along Dundas to terminate at Kipling station, to support the 6 point redevelopment.
  • Jane LRT, rather than continuing south from Eglinton (where ROW constrains means it would have to be buried) operates as a branch of the Eglinton LRT (half of the trains from Mount Dennis continue west to the airport, half go north). Jane LRT terminates at TYSSE station Pioneer village at Steeles.
  • DRL is extended north from Keele to Mount Dennis, providing service to the Junction and reactivated cross-town RER line in the process.
  • Sheppard subway is continued west to Sheppard west station, where it interlines. Southbound from Vaughn Centre, half of the trains would go east at Sheppard towards Don Mills and the other half would continue downtown. This extension has the added operational benefit of making the Wilson Yards accessible to the Yonge line.
  • Finch West LRT is extended east to terminate at Yonge & Finch. It's extended south and west to the airport via Rexdale (intersecting Malton GO).
  • Eglinton West LRT is extended to the airport, with a maximum of grade separations. Connection to Missisauga transitway not shown.
This is excellent! Thanks for posting.

Can Dufferin Streetcar handle its demand? Without it's own ROW south of Lawrence, is it even an improvement over current bus operations?
