Roads: Ontario/GTA Highways Discussion

[lenaitch]

heres the offical plans ... seems they are going to outright eliminate them... with no replacements. Interesting... http://hwy400ncanalbridges.ca/docs

I assume they see no need with the new Line 5 interchange just 3km up the road. Line 5 feeds into Canal Rd.

******
Upgrading of Hwy 11 between Barrie and Gravenhurst is long overdue. A lot of roadside businesses never recovered from the installation of the centre beam. Unless the do a realignment, many areas don't have enough room for a service road, particularly north of Severn Bridge and I don't think the 'turn-around interchanges' has been a fan favorite.



[kamira51]

MTO has completed the EAs for upgrading 11 between Barrie and Gravenhurst, and it's a full 400-series highway with no at-grade intersections.

Do you have a link to the EA ?



[JasonParis]

MTO has completed the EAs for upgrading 11 between Barrie and Gravenhurst, and it's a full 400-series highway with no at-grade intersections.

I think the answer is no, but any chance that would mean a renaming of this segment to 411?



[innsertnamehere]

Do you have a link to the EA ?

I have the PDF for the Washago-Gravenhurst section..

This gives you an idea of the design:

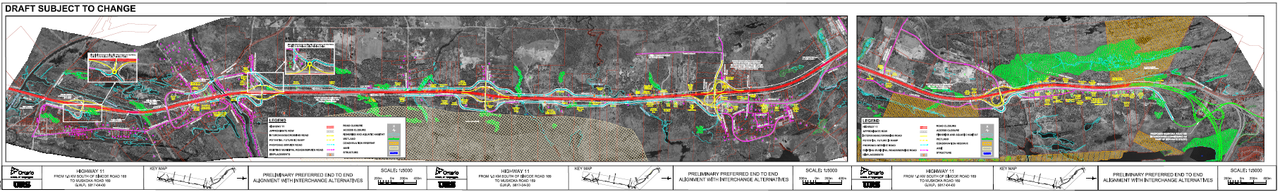

Total section:

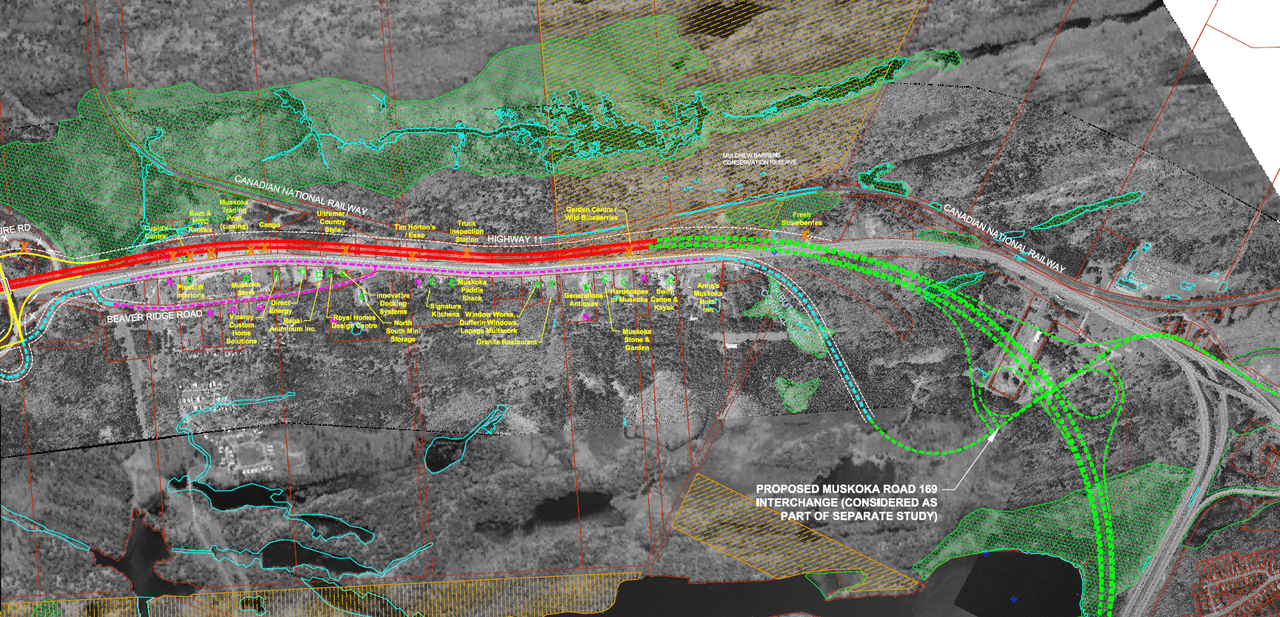

Gravenhurst Interchange:

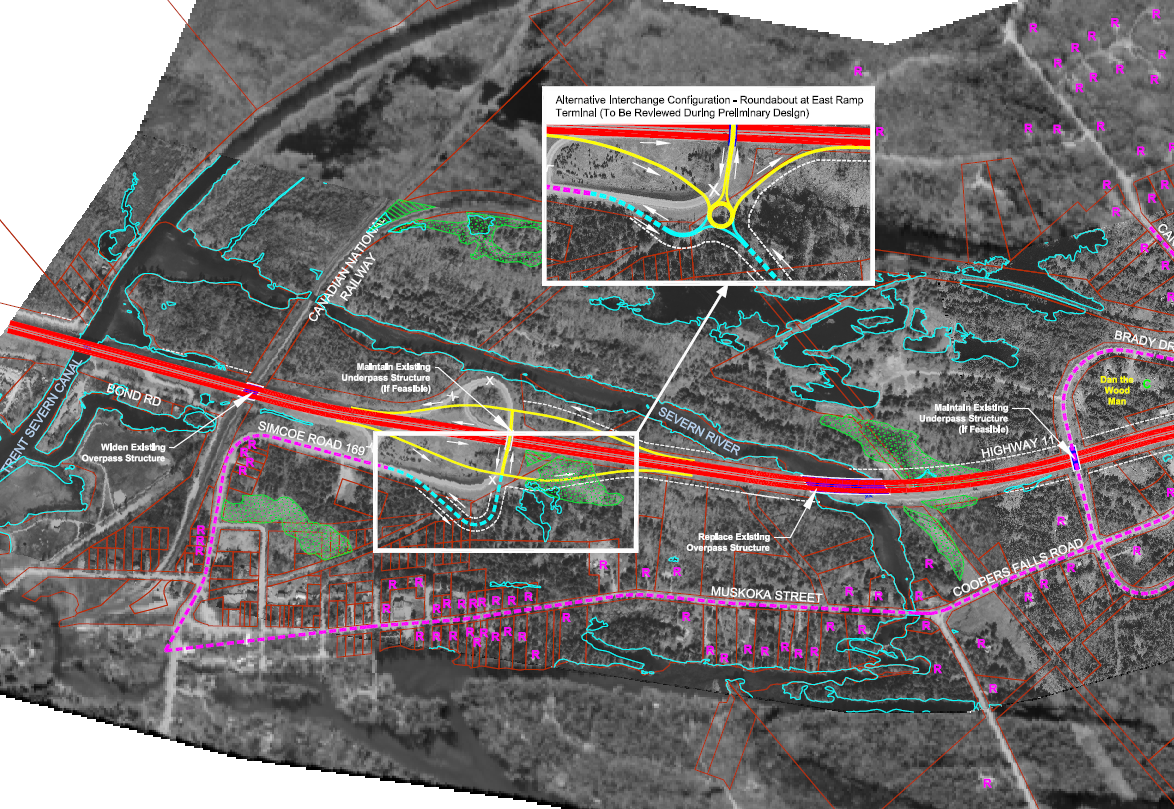

Hwy 169 Interchange in Washago:

This EA was done about a decade ago and was available online at the time, I believe the section south of Washago was done a while ago (late 90's or early 2000's) and wasn't available online at all.

The West St interchange in Orillia is getting replaced right now, and the preliminary design for it showed a 6-lane cross section of Hwy 11 as well.

https://hwy11westst.ca/wp-content/uploads/2019/06/18M-01021-03-Hwy-11-West-St-PIC-Boards-for-Web.pdf



[innsertnamehere]

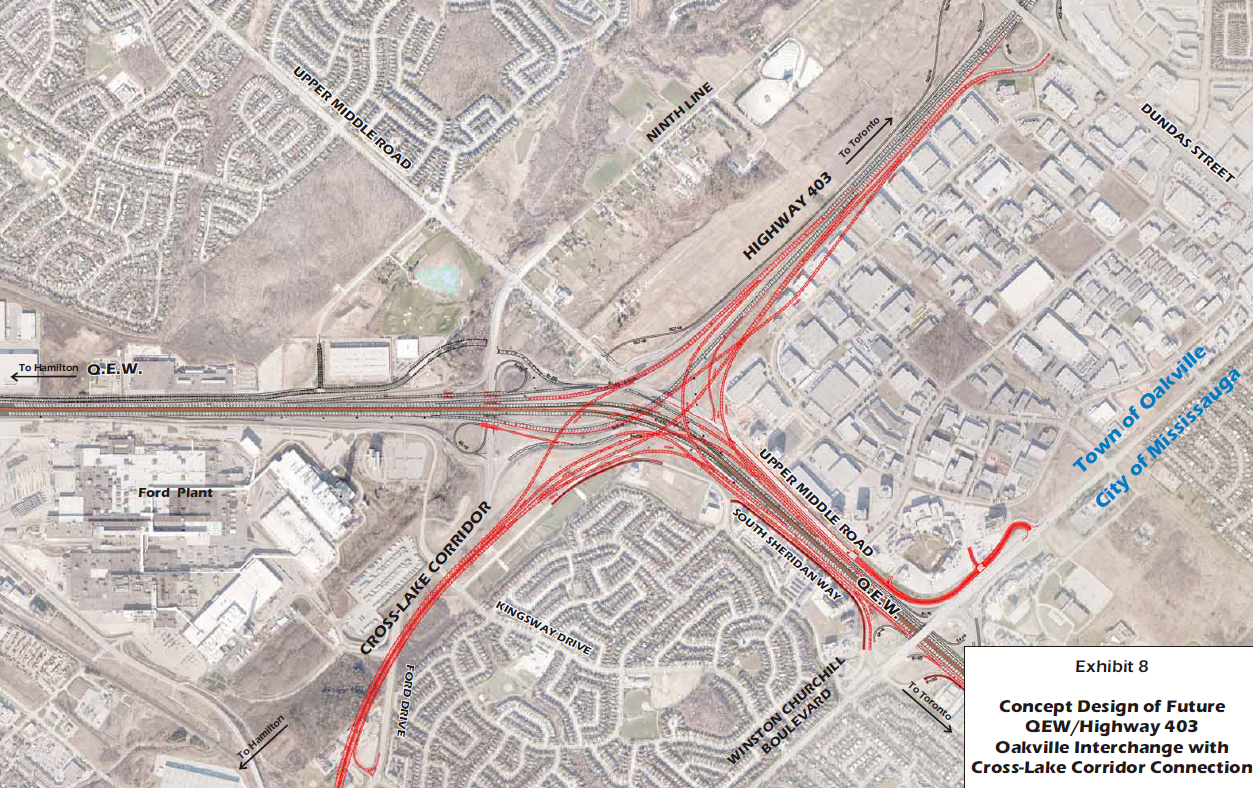

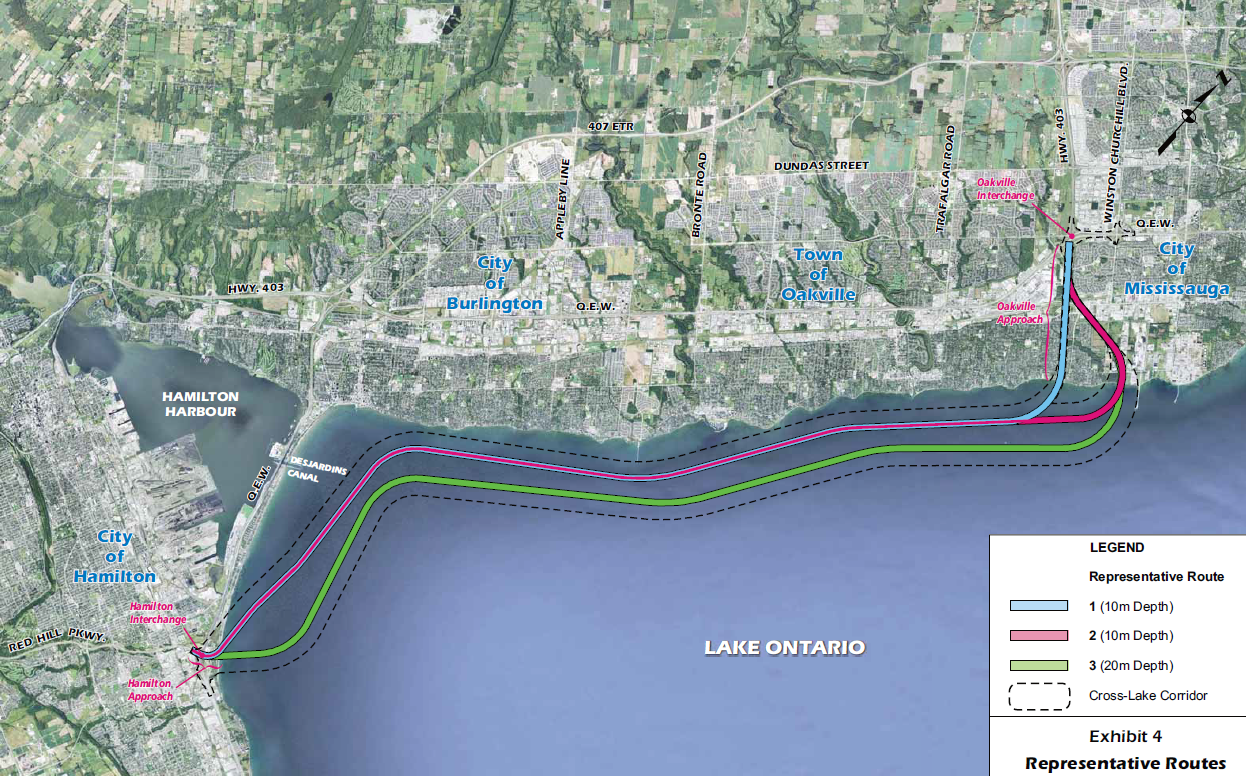

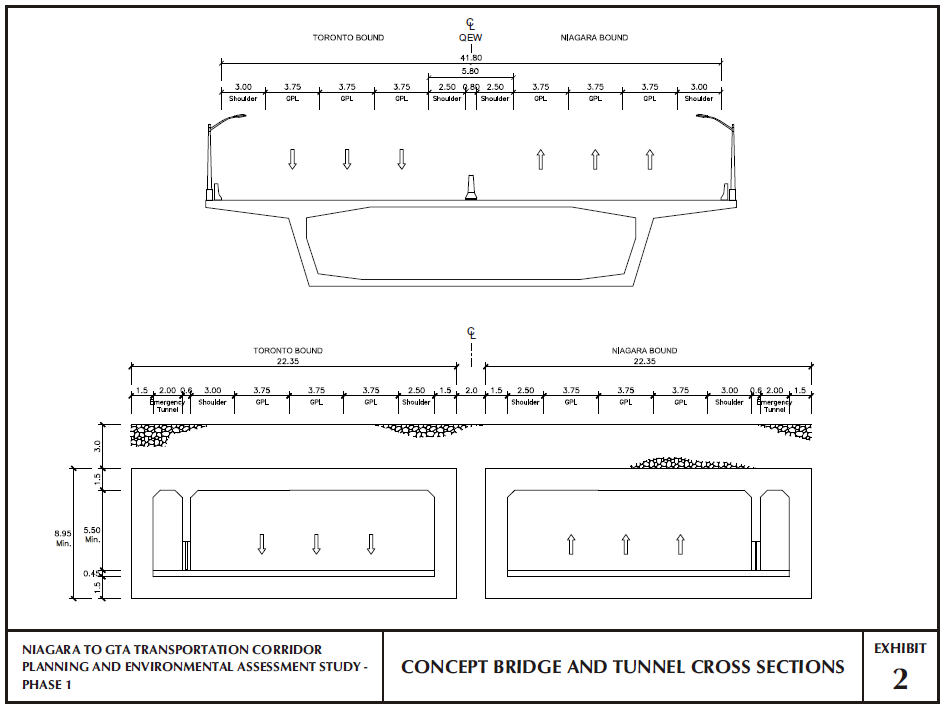

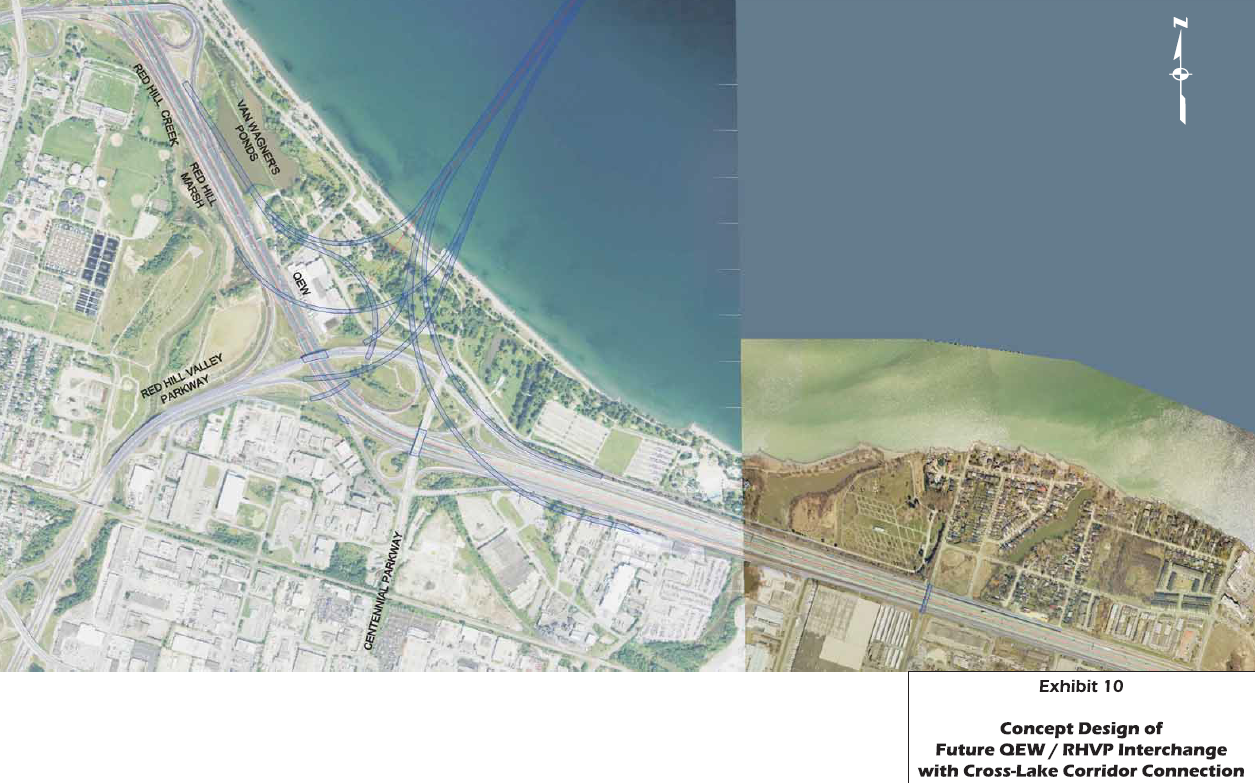

going down my saved highway designs from MTO rabbit hole.. I will still forever love how MTO somewhat-seriously considered a cross-Lake-Ontario tunnel to Bypass Halton Region as an actual option at one point, going as far as to design preliminary interchanges:



[afransen]

Wouldn't it be far cheaper to just deck the QEW?



[innsertnamehere]

Wouldn't it be far cheaper to just deck the QEW?

They also looked at a collector-express system on the QEW.

Ultimately they deemed both too expensive as the collector-express system would need a ton of expropriation along the highway.



[lenaitch]

I have the PDF for the Washago-Gravenhurst section..

This gives you an idea of the design:

Total section:

View attachment 412183

Gravenhurst Interchange:

View attachment 412181

Hwy 169 Interchange in Washago:

View attachment 412182


This EA was done about a decade ago and was available online at the time, I believe the section south of Washago was done a while ago (late 90's or early 2000's) and wasn't available online at all.

The West St interchange in Orillia is getting replaced right now, and the preliminary design for it showed a 6-lane cross section of Hwy 11 as well.

https://hwy11westst.ca/wp-content/uploads/2019/06/18M-01021-03-Hwy-11-West-St-PIC-Boards-for-Web.pdf

Well, if nothing else, it looks like they plan to remediate the tight curve at 169/Gravenhurst. The s/b Tim's would have to close. Such is the price of progress.



[kamira51]

going down my saved highway designs from MTO rabbit hole.. I will still forever love how MTO somewhat-seriously considered a cross-Lake-Ontario tunnel to Bypass Halton Region as an actual option at one point, going as far as to design preliminary interchanges:


View attachment 412196View attachment 412197View attachment 412198View attachment 412199

I wish you could easily find these kind documents online.



[Transportfan]

I can’t help but agree. Highway 11 has several stretches with at-grade intersections at low traffic crossroads. There are several interchanges on 69 that didn’t need the grade separation – Crooked Lake Road being a prime example.

A better solution would be to just put in diamond interchanges with half-pipe culverts for underpasses.



[Allandale25]

https://twitter.com/i/web/status/1546247993086590976



[lenaitch]

A better solution would be to just put in diamond interchanges with half-pipe culverts for underpasses.

Half-pipes aren't great for clearances, typically need more overburden engineered and unless the grade is raised. passive drainage can be a problem.



[Deadpool X]

https://twitter.com/i/web/status/1546247993086590976

We'll talk about cancelling this highway's expansion when Milton gets subway lines, all day 2 way GO service and a large bus network.



[Undead]

Milton, subways, huh? I daresay one of the best ways to ensure a given municipality never gets subways is by building sprawl oriented infrastructure. Note I'm not a fan of the urbanist histrionics against the 413. But all drama aside, it's still probably not the type of thing we should be building. Yes, all suburban munis need significant transit improvements.



[ShonTron]

Milton, subways, huh? I daresay one of the best ways to ensure a given municipality never gets subways is by building sprawl oriented infrastructure.

Vaughan might be surprised by that.
