Waterfront Transit Reset Phase 1 Study

How should Toronto connect the East and West arms of the planned waterfront transit with downtown?

  • Expand the existing Union loop

    Votes: 169 72.8%
  • Build a Western terminus

    Votes: 10 4.3%
  • Route service along Queen's Quay with pedestrian/cycle/bus connection to Union

    Votes: 23 9.9%
  • Connect using existing Queen's Quay/Union Loop and via King Street

    Votes: 15 6.5%
  • Other

    Votes: 15 6.5%

  • Total voters
    232

Northern Light

Superstar
Member Bio
Joined
May 20, 2007
Messages
18,732
Reaction score
42,976
Location
Toronto/EY
Sure, let's add 10 billion to the price tag for the hell of it!

Now now, let's not understate the benefits of going over or under the Lake........

It saves up to ~500m; or at average between station speeds (~60km/ph) about 30s travel time for a passenger.

Plus, it by-passes all those rowdies at Sunnyside Beach, no subway for them!

😄


W. K. Lis

Superstar
Member Bio
Joined
Dec 24, 2007
Messages
21,998
Reaction score
12,111
Location
Toronto, ON, CAN, Terra, Sol, Milky Way
Now now, let's not understate the benefits of going over or under the Lake........

It saves up to ~500m; or at average between station speeds (~60km/ph) about 30s travel time for a passenger.

Plus, it by-passes all those rowdies at Sunnyside Beach, no subway for them!

😄

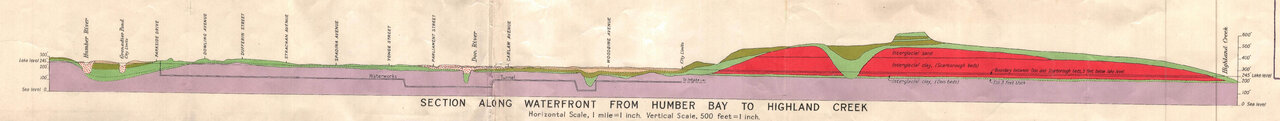

Will depend on how deep under the sand and silt will it take to reach bedrock. Click on image (twice) below to enlarge.

From link.

  • Like
Reactions: rbt

nfitz

Superstar
Member Bio
Joined
Nov 10, 2007
Messages
24,780
Reaction score
5,325
Location
Toronto
Bedrock surface is very shallow near the lake. It dips substantially around Humber Bay though.
Not as deep as the Yonge North extension is going to be underground to get around some Nimbys though. :)

Sure, let's add 10 billion to the price tag for the hell of it!
Four km of bored tunnel won't add $10 billion. The simple boring of a tunnel isn't a particularly expensive part of the job; it's all the extra structures ... of which there will be none underneath the lake. Should be a lot cheaper than the tunnelling, portals, and underground stations on the rest of that line.

It's quite an interesting idea. Not worth it if there is extra capacity available on the rail corridor. But do we really want to use all our extra rail corridor width for Ontario Line projects that should/could be better located, rather than future-proofing them for projects like HSR and HFR, and other RER-like projects?


CapitalSeven

Active Member
Member Bio
Joined
Apr 25, 2007
Messages
946
Reaction score
588
I was kind of joking when I threw that crude map in, but there would be advantages. I always thought a submerged prefab tunnel was more plausible than using TBMs. No stops between Dufferin Gate and Humber Bay Shores. The streetcar fills in along the shore.

Last edited:

Northern Light

Superstar
Member Bio
Joined
May 20, 2007
Messages
18,732
Reaction score
42,976
Location
Toronto/EY
I was saying something, at some point........about the waterfront east LRT moving forward...............

From the budget notes for the Transit Expansion Office:



Note that the capital project for this line itself is still listed as 'unfunded'.

But its a very near-term and specific unfunded:



daniel_kryz

Active Member
Member Bio
Joined
Mar 10, 2020
Messages
437
Reaction score
846

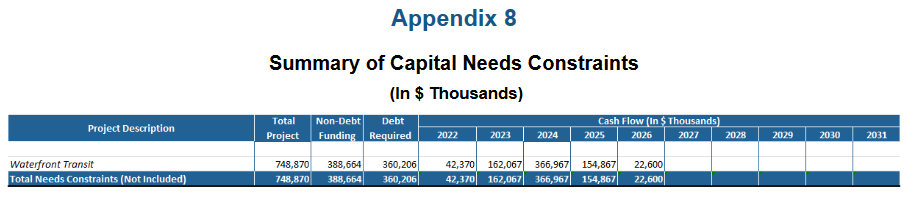

Note that the capital project for this line itself is still listed as 'unfunded'.
To my understanding, Appendix 8: Capital Needs Constraints shows projects that are unfunded due to a lack of resources or money. The tax-rate is set first, so we end up with projects that are left out of the budget because of a tax-rate (and other revenue sources) that are too small. Am I right in my understanding that the Waterfront East LRT was supposed to receive $42.37 million this year and that it was deferred? If so, then how is this good news and what are they going to do in the meantime? We've seen so many great renderings, and I thought that funding would be secured this year in order to complete detailed design and a business case... which in itself is necessary to secure funding from the federal & provincial governments. So does that mean that nothing will happen in 2022 and that the project was pushed back a full year?


Northern Light

Superstar
Member Bio
Joined
May 20, 2007
Messages
18,732
Reaction score
42,976
Location
Toronto/EY
To my understanding, Appendix 8: Capital Needs Constraints shows projects that are unfunded due to a lack of resources or money. The tax-rate is set first, so we end up with projects that are left out of the budget because of a tax-rate (and other revenue sources) that are too small. Am I right in my understanding that the Waterfront East LRT was supposed to receive $42.37 million this year and that it was deferred? If so, then how is this good news and what are they going to do in the meantime? We've seen so many great renderings, and I thought that funding would be secured this year in order to complete detailed design and a business case... which in itself is necessary to secure funding from the federal & provincial governments. So does that mean that nothing will happen in 2022 and that the project was pushed back a full year?

Stay tuned.


turini2

Active Member
Member Bio
Joined
Aug 20, 2020
Messages
421
Reaction score
1,562
Location
London, UK
Excellently pulled out of the Waterfront Toronto Rolling Five Year Strategic Plan by Northern Light in the Lower Don Lands Revitalisation thread - and copying here for your info.

We continue to make progress on design and engineering for surface works on Queens Quay East between Bay Street and the future New Cherry Street, and on New Cherry Street from Queens Quay to a new loop just north of the Ship Channel (Polson Loop). These components, along with the design work being led by the TTC to expand the existing Union Station and Queens Quay underground streetcar stations, make up Phase 1 of the Waterfront East RT Extension project. In the coming fiscal year (2022-2023), subject to funding approval, we aim to advance design for these segments beyond 30%.

Our design and engineering work is helping inform a business case and Environmental Project Report (EPR) - being developed in collaboration with City staff and the TTC, and shaped by public input that will be submitted to Toronto City Council in early 2022. Based on this foundational package of information, Toronto City Council will determine the path forward for transit in the area, including with respect to funding.


44 North

Senior Member
Member Bio
Joined
Feb 8, 2010
Messages
3,738
Reaction score
2,250
Location
Ward 28

Northern Light

Superstar
Member Bio
Joined
May 20, 2007
Messages
18,732
Reaction score
42,976
Location
Toronto/EY

tsm1072

Active Member
Member Bio
Joined
Feb 11, 2021
Messages
180
Reaction score
534

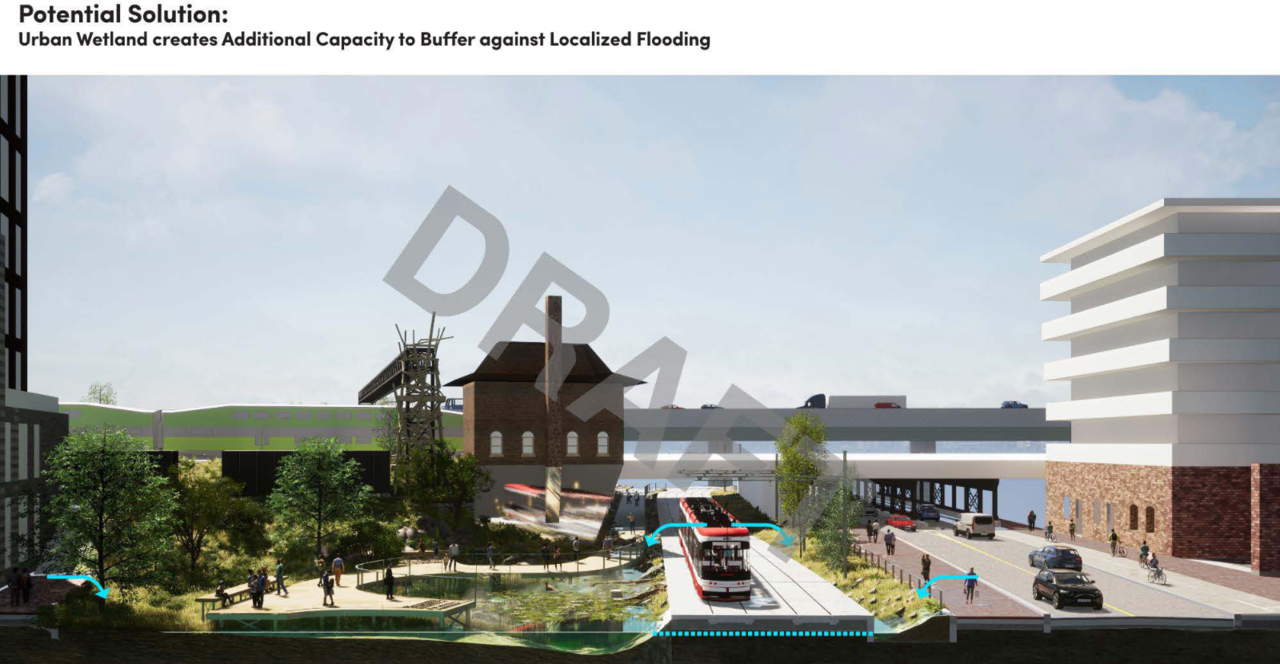

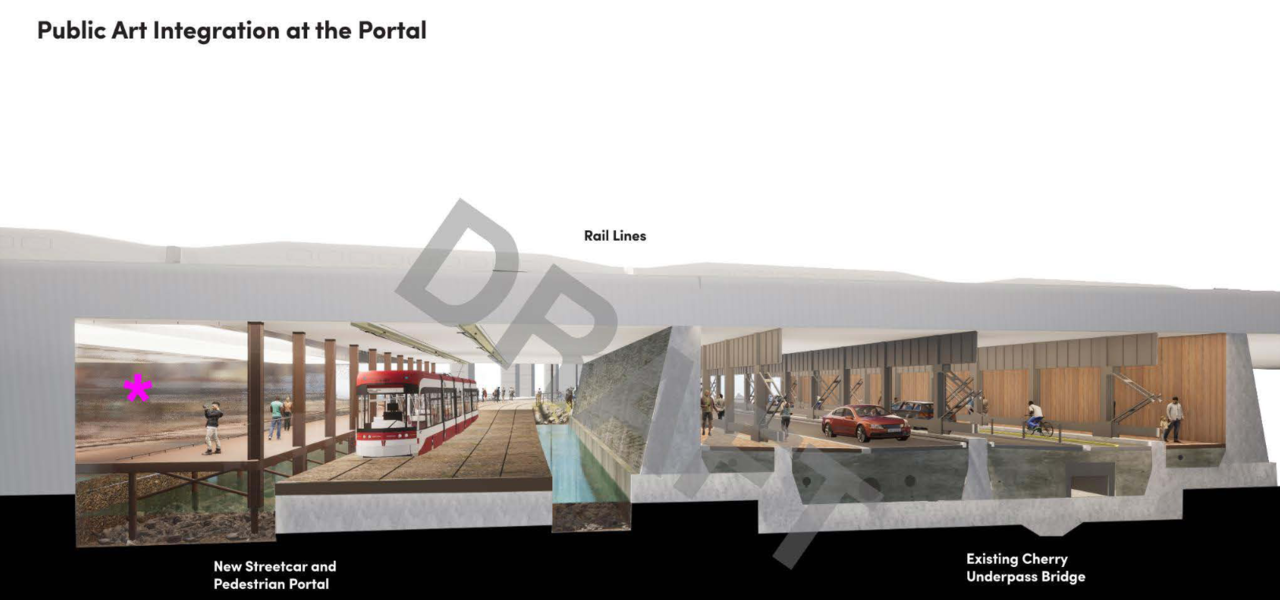

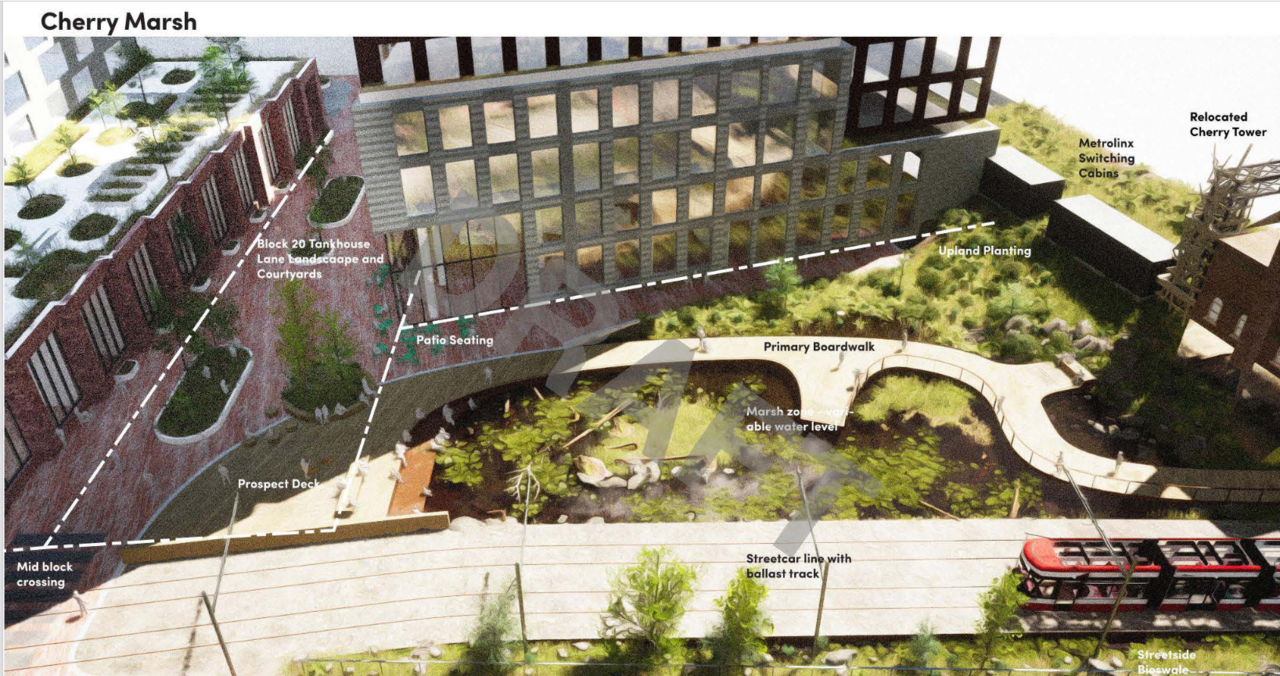

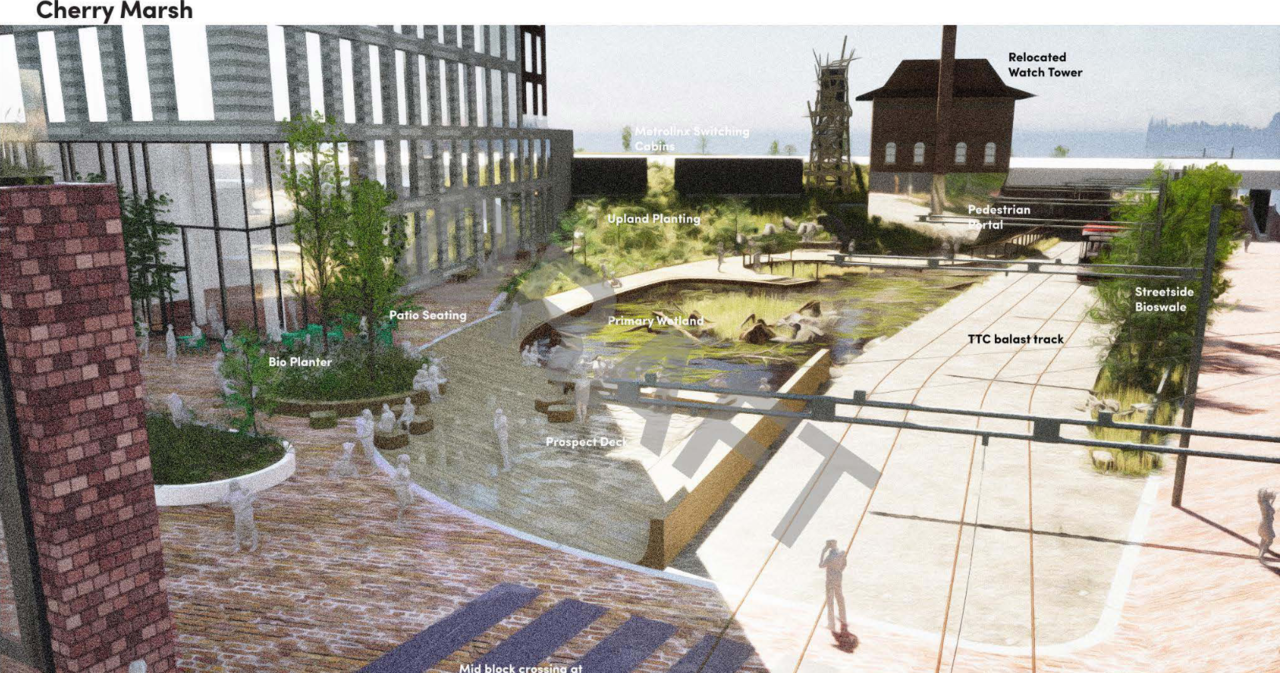

Ok that's pretty interesting and new. Wetland, daylit creek, and greenwall as part of a streetcar underpass. I love water.
Doing this, along with all the space around villiers island, will make the east end of the waterfront a truly amazing public realm. I hope they are able to find the money and political will to make this happen.
