Actually, I prefer this red. I think it looks (somehow) more sophisticated with its darker tones. I recognize that this is a purely subjective opinion. It's not too subdued but it's also not too "hey look at me!"


Kai White

New Member
Member Bio
Joined
Jul 7, 2015
Messages
69
Reaction score
239


Attachments

  • DSC02342.jpg
    1.7 MB · Views: 321
  • DSC02348.jpg
    2.1 MB · Views: 337
  • DSC02352.jpg
    1.7 MB · Views: 276
  • DSC02360.jpg
    2.6 MB · Views: 336

interchange42

Administrator
Staff member
Member Bio
Joined
Apr 23, 2007
Messages
25,044
Reaction score
25,943
Location
by the Humber

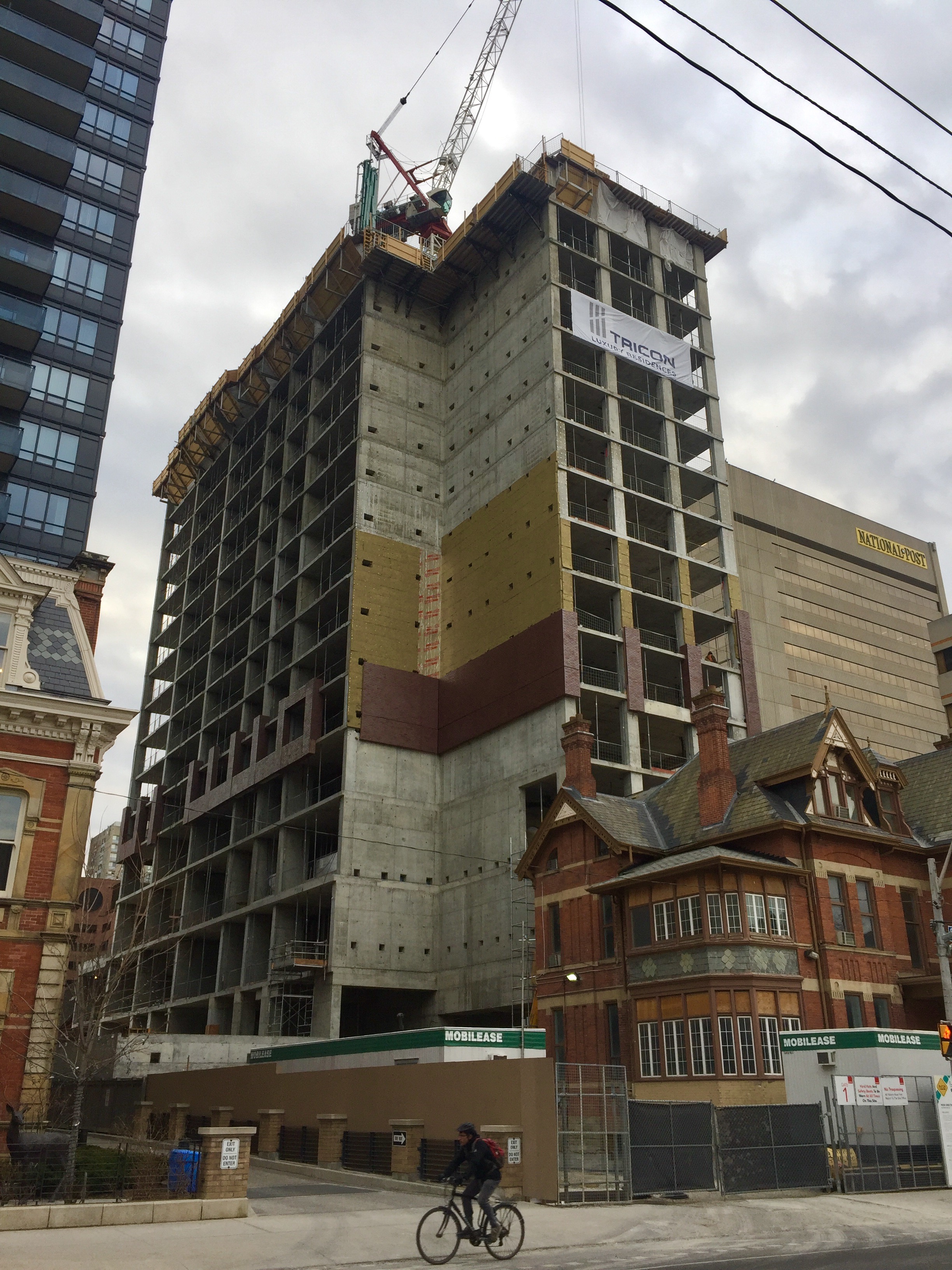

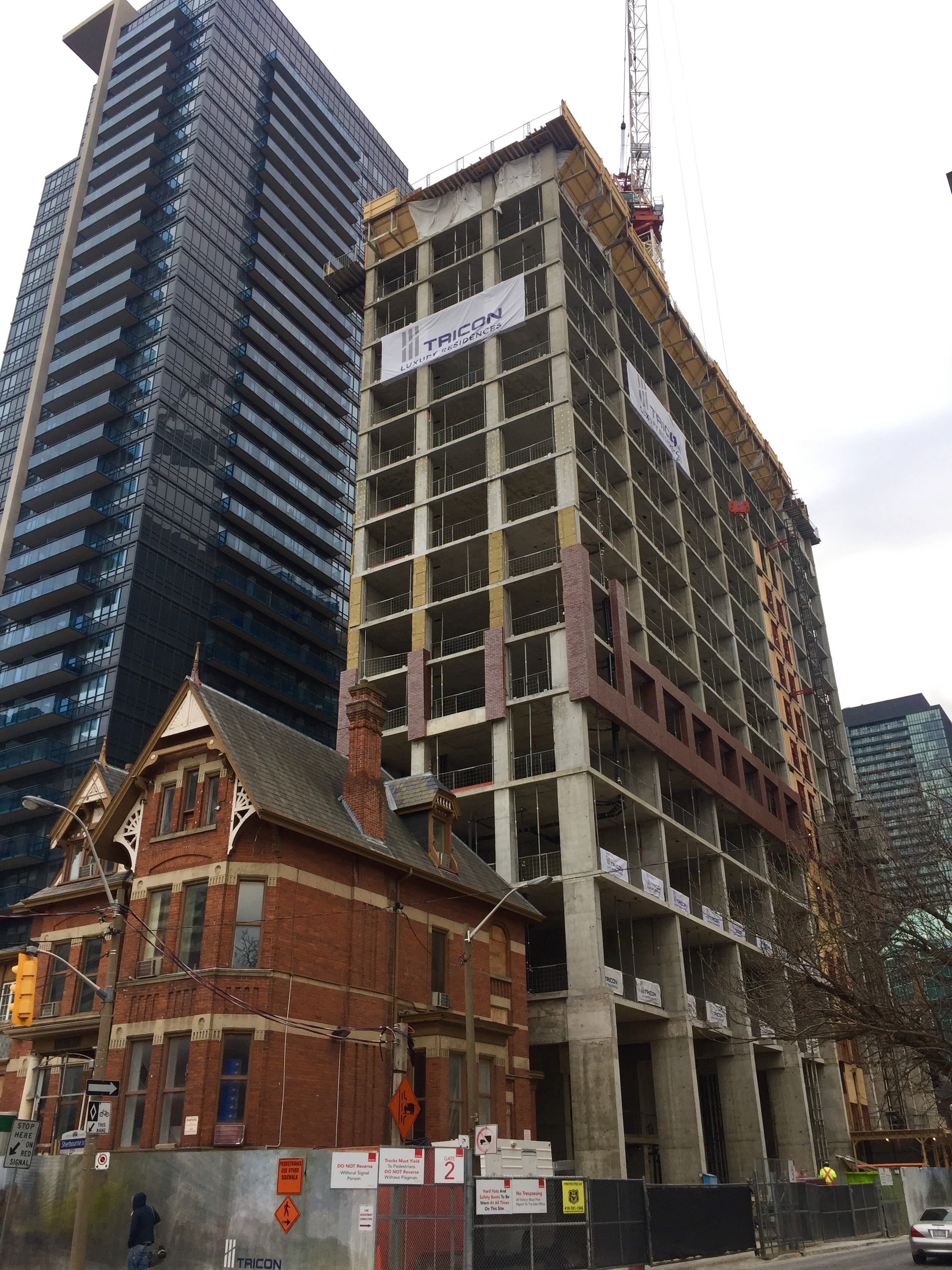

Wow, it goes positively purplish in the shade. Looks like they have some levelling and adjusting to do before those brick panels end up in their final resting place. I wonder if that's something that waits for the windows to go in.

42


interchange42

Administrator
Staff member
Member Bio
Joined
Apr 23, 2007
Messages
25,044
Reaction score
25,943
Location
by the Humber
They aren't "bricks", they're bricks, and I've talked about it before at length in this thread and others like the Daniels Waterfront thread. In this case, the concrete is poured after the bricks have been configured for a panel.

42


salsa

Senior Member
Member Bio
Joined
Sep 27, 2013
Messages
8,808
Reaction score
9,637
Location
North York
They aren't "bricks", they're bricks,

Ah, that makes perfect sense! :)


Anyway, don't mind if I repost your post from the Daniels thread (for those who need it).
I've written about this a number of times now. There are different types of precast brick panels.

The cheapest type is where the concrete is laid into a mould with the brick pattern in it already. That stuff is typically erected with the panel in a neutral concrete colour, the bricks getting stained once the panels have been installed on the building face. That's how it was does at King West Life in Liberty Village, for one example.

More frequently these days, bricks, yes actual bricks, are laid into a mould, spacers are placed between them, and then the concrete is then poured in as a structural backing. After curing, the panel is removed from the mould, the spacers are removed, and you've got a real brick panel to hoist into place. This allows builders to put brick high up on buildings without having to erect either massive scaffolds beside the walls, or dropping movable stages over the side.

Besides the more efficient fabrication of the brick panels, the panels are expected to be lower maintenance, longer lasting, and have a higher R value.

When you see varying tones in the bricks of a panel, that's a pretty good indication that you're looking at real brick.
