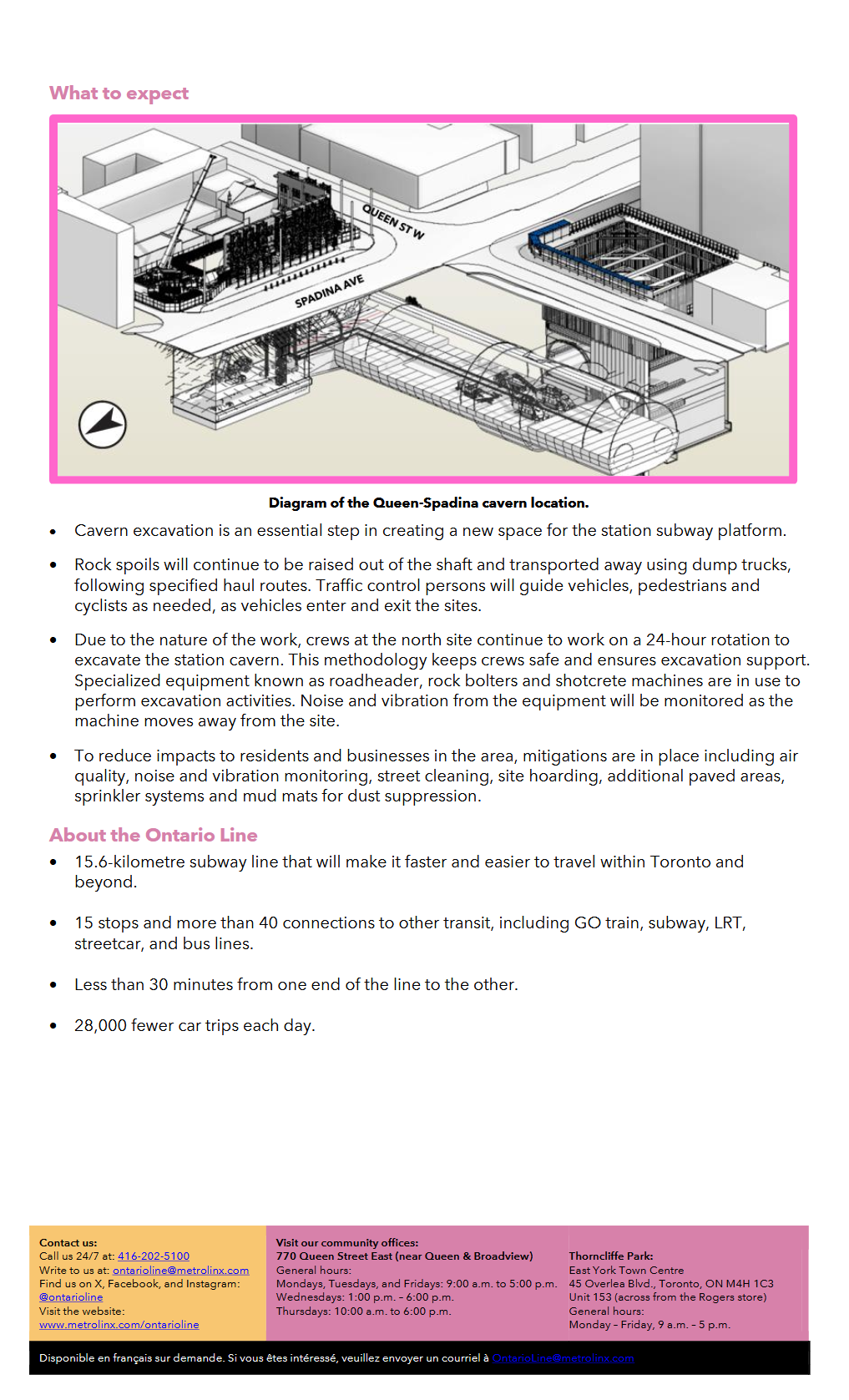

Has anyone posted an interior schematic of the station before? I cant seem to see anything on the forum page.

If you click on the project’s database page at the top, you can flick through thumbnails of all forum images and you’ll find there are some renderings, which were posted in July.

As a learning opportunity for all, I will not provide a link.



[tstormers]

From Oct. 22.



[kotsy]



[Freddy]

Where does all that soil and debris go from excavations like these?



[innsertnamehere]

whoever is willing to accept it.

It depends on if it's polluted as well - contaminated soil goes somewhere like the Taro Dump in Hamilton, for example. I believe there are other facilities closer to Toronto like that as well.

If it's clean fill, it goes to all kinds of places. Some old quarries accept it, often construction projects need fill - etc. Something like a large suburban warehouse needs dozens of acres to be graded flat in order to support a 500,000-1,000,000sf warehouse for example - that often needs lots of fill depending on local grading.
