Freights always have a slower speed for a set area than passenger rail. Not just on track class but things like crossings etc.
I believe the freight limit is either 30 or 20 mph. I didn't see the speed limit sign very well when I went by. Even on the Weston sub while the passenger limit is 80 mph, the freight limit is 30 mph.

Anyone know why our creeks tend to be channelized as opposed to having natural terrain?

Yes, I know.

With a few exceptions, most creeks up to about the 1960s were treated as being part of the sewer system; and served the purpose of flood conveyance.

The latter is particularly key.

The former's impact is that many creeks, notably in Scarborough weren't even named, except as 'sewer xyz' on old works maps from the former Scarborough.

Which is to say, they weren't valued for 'nature' in anyway. Much of Scarborough (and this would be true of other inner-suburban areas) first went to farmland, before industry and subdivisions.

The water was simply seen as in-the-way, so there was no idea of keeping the water above ground for either scenic or ecological purposes.

In respect of flood conveyance they did have an engineering value.

All water flows down hill, and in Toronto, ultimately to Lake Ontario.

Engineers thought this was brilliant as it allowed the movement of storm water in particular, but also combined sewer overflows to be quickly dispatched to the Lake and away from roads, homes and businesses.

The hardening of the channels was seen as a way to maximize the speed of flow and to reduce the risk of erosion/scouring of the banks.

That view started to change by the 70s; though all creek hardening wouldn't stop for another decade or two.

Since then, the tendency has been to reverse this work where practical.

Last edited:
My understanding of this work is to enable 30 minute service to West Harbour, correct?
Yes, though it's not entirely clear how, given that the line is already triple-tracked as far as Bayview Junction. One possibility is that CN has offered a second hourly slot, as long as GO only uses the single south track, leaving the north two open for CN freight. Aldershot station is already quad-tracked, so GO trains could potentially run a half-hourly service on a single track if the 4th (south) platform at Aldershot could act as a passing siding for GO trains in opposite directions.

My understanding of this work is to enable 30 minute service to West Harbour, correct?
No. 30 minute service is already perfectly capable with the existing trackage. What this will do, however, will give GO more ability to stow trains out of the way of other trains if need be.

Dan

So once the pocket track at Aldershot is done, I’d assume that half hourly service to West Harbour shouldn’t be far off? I’d assume you’d get another nice bump in ridership and having LSW half hourly service run just one more station down the line shouldn’t be super resource intensive.

So once the pocket track at Aldershot is done, I’d assume that half hourly service to West Harbour shouldn’t be far off? I’d assume you’d get another nice bump in ridership and having LSW half hourly service run just one more station down the line shouldn’t be super resource intensive.
My understanding of this work is to enable 30 minute service to West Harbour, correct?
No. 30 minute service is already perfectly capable with the existing trackage. What this will do, however, will give GO more ability to stow trains out of the way of other trains if need be.

Dan
They need to fix the tracks leaving West Harbour. That contract needs to be tendered. But great none the less.

They need to fix the tracks leaving West Harbour. That contract needs to be tendered. But great none the less.
With Confederation starting construction in 2022, I would assume that the tracks will finally get tied into the mainline sooner than later. At this point I guess it makes sense to do it during the third track construction so the tie in doesn’t have to be modified later.

Dec 13
More up on site

Been a few months since I last saw the Bramalea station and see ML still doesn't have working elevators from the new/old tunnel. So much making stations accessibly. There isn't any signs or notices that the elevators are not working nor tell anyone that they have to go to the the elevator by the bus terminal to gain access to platform 2/3.

Steel framing for the bus terminal roof cover west of the station and see no room for the loop.









You can see where the new road to/from Steeles current traffic light. Most of the centre parking area is pave and strip.






So once the pocket track at Aldershot is done, I’d assume that half hourly service to West Harbour shouldn’t be far off? I’d assume you’d get another nice bump in ridership and having LSW half hourly service run just one more station down the line shouldn’t be super resource intensive.
The current schedule is already timed such that 2 trains per hour continue to West Harbour, it's just that half of them terminate at Aldershot and sit there extra long.

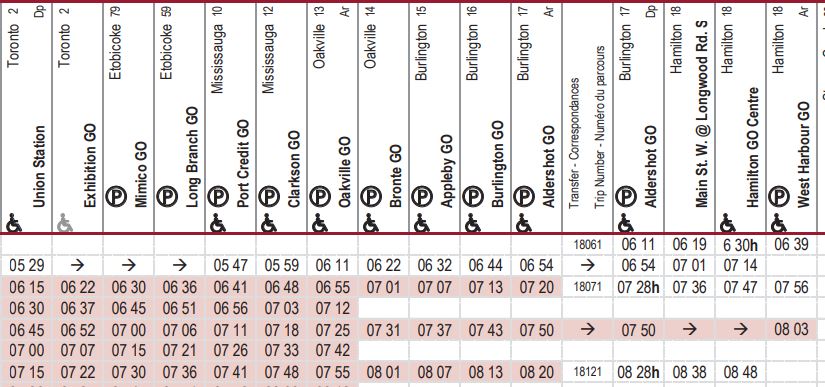

Take for example the 06:45 and 07:15 weekday departures from Union. The 06:45 train to Hamilton West Harbour gets there at 08:03, sits there for ten minutes ...



... and then returns eastbound at 08:13:

West Harbour | - | - | Aldershot | - | Aldershot | etc. etc. | Union


Meanwhile the 07:15 train arrives at Aldershot at 08:20, sits there for 35 minutes and then returns at 08:55. In that same time, it could have continued to West Harbour, arriving there at 08:33, and departing eastbound at 08:43.

So the net resources would be minimal: only track fees, fuel and vehicle wear/tear. There would be no difference in crewing or fleet requirements.

Although the current timetable is future-proofed for half-hourly service to Hamilton, it does not support my hypothesis that there would be a meet at Aldershot, since the westbound trains pass through at :20 and :50 past the hour, while the eastbound trains pass through at :25 and :55. It is of course still possible that they will shift the eastbound and westbound timetables by a couple minutes to create a meet at Aldershot.

Personally I'd rather have 1 express train per hour to Hamilton than 2 local trains. As I described earlier, cutting the 30-minute local service back at Burlington would free up 1 trainset, which is already 1/3 of the 3 trainsets required for an hourly express service to West Harbour. Burlington is the end of GO track ownership, so this service design also minimizes the number of trains using CN trackage, which will reduce track fees and potentially reduce delays.
capture2-jpg.338426

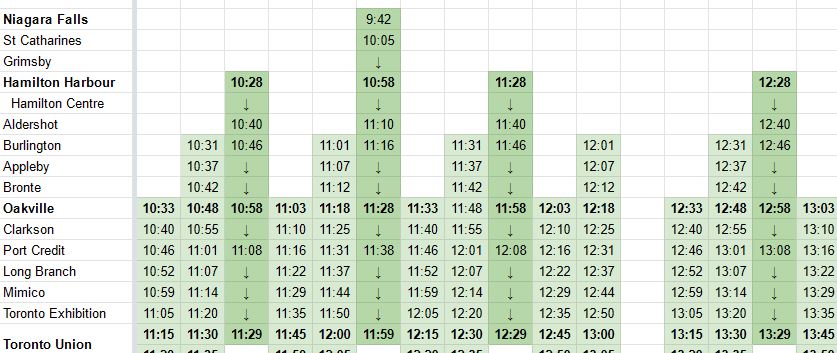

In this concept, a handful of Niagara Express trains would provide a second hourly service during certain hours

Last edited:

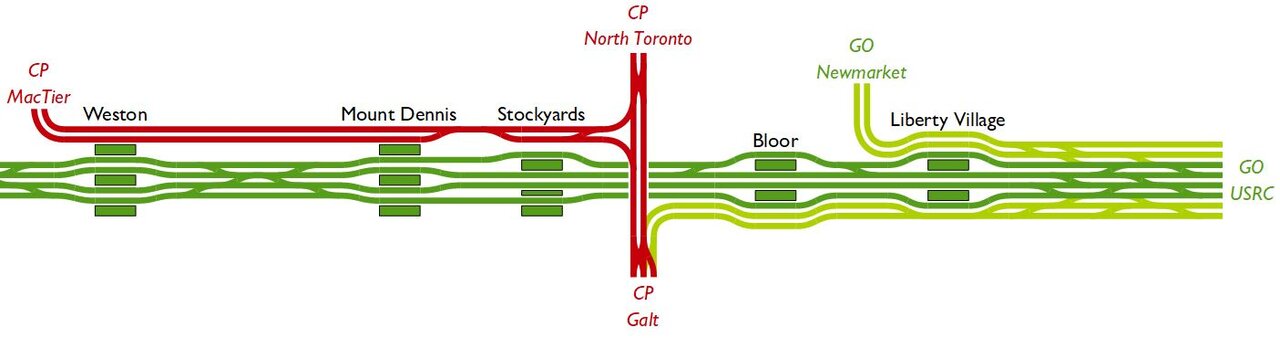

Thanks to the SmartTrack station consultations over the past few weeks, we now have a full end-to-end picture of the track configuration that Metrolinx envisages for the Weston Subdivision.

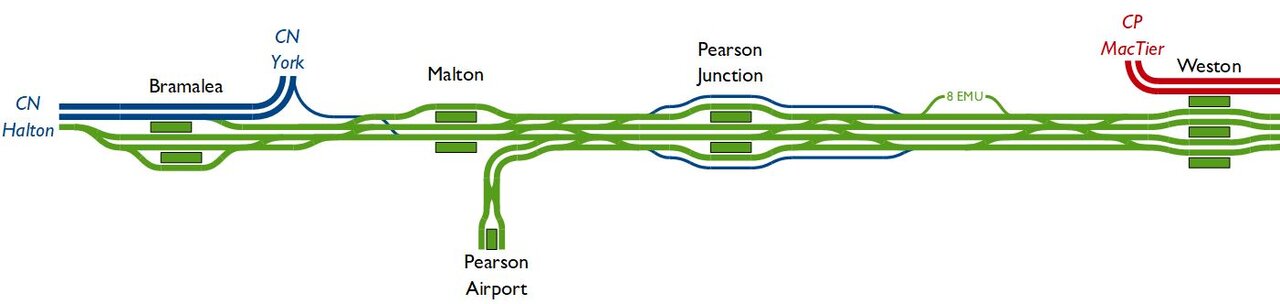

I have combined the conceptual track layout from the New Track and Facilities EA (massive PDF here) with the illustrated platform layouts from the St. Clair/Old Weston (Stockyards) and King/Liberty (Liberty Village) public consultations to create a diagram of the tracks proposed by Metrolinx for the relatively near future:



In general I am very pleased with this proposed design, as it will be able to support a substantial amount of service. My biggest concern is that Metrolinx does not seem to be rationalizing the 4 tracks in to express/local pairs. This creates a number of problems:

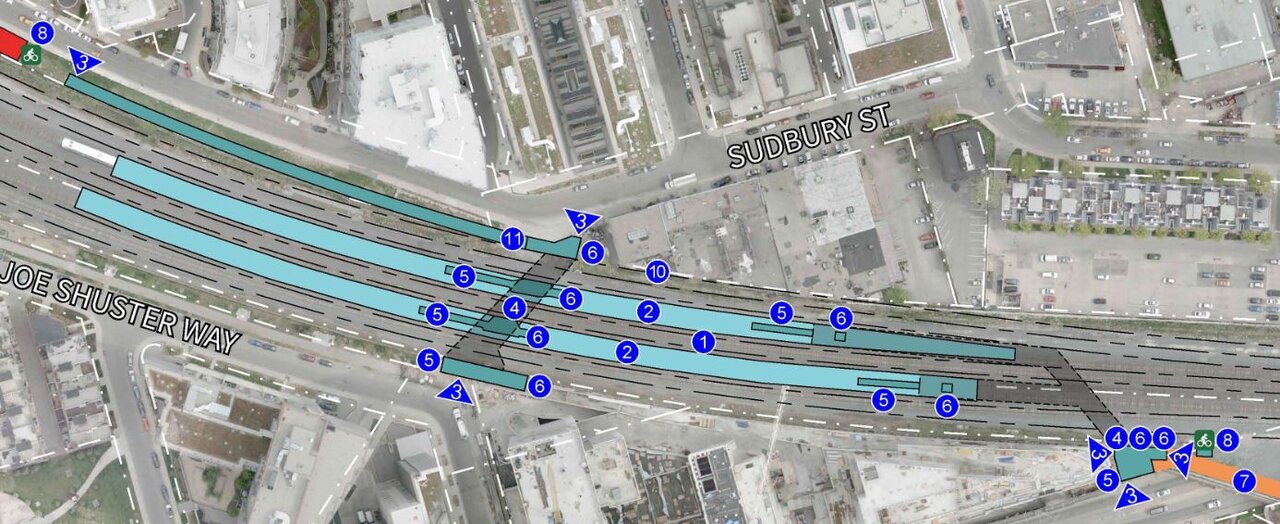

1. Providing platforms on all 4 Kitchener Line tracks at Liberty Village requires eliminating at least 1 of the planned Barrie Line and Milton Line tracks. The conceptual site plan from the 18 November public consultation shows the Milton line being reduced to a single track, rather than the double track which had always been planned until now. Furthermore it shows the northbound Barrie Line track crashing into the north pier of the station's overpass at Sudbury Street.

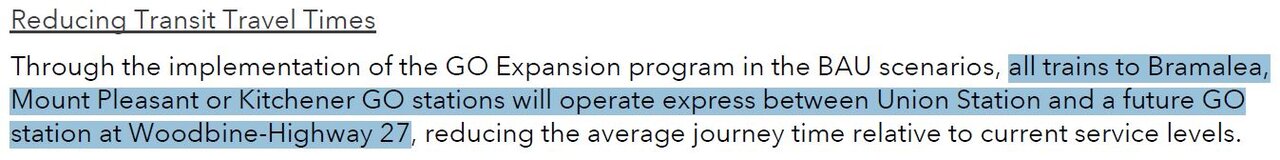

2. As I have described before, mixing high-frequency local and express services on the same tracks severely limits the speed and reliability of express services. If local service runs every 15 minutes, then the express service can be at most 7 minutes faster than it before catching up to it. Today's express service is already 12 minutes faster than local services, and the number of local stations is only going to increase further. At a service planning level, Metrolinx does seem to be aware of this limitation, given that on Page 28 of the 2021 Kitchener Expansion Business Case analysis it states that all trains continuing west of Pearson junction (Wice) will operate express.

This, combined with the lack of talk of a rail-to-rail grade separation at said junction, suggests that the concept is for the north pair of tracks to serve express services, while the south pair is primarily used by a local service to the airport.

Here is how I would rationalize the track configuration to better suit that arrangement. I have reduced the two SmartTrack stations to a single island platform on the local tracks, to reduce construction costs and ensure that all 8 tracks can be maintained at Liberty Village. I have also slightly altered Pearson (Wice) and Bramalea (Halwest) junctions to reduce conflicts.
I have coloured the "express" pair in a much darker shade of green, purely to illustrate the typical use of each track.





Here's a conceptual service pattern which could operate on my slightly-adjusted track layout. I have increased the variety of services compared to the pattern described in the Business Case. Their stopping patterns were probably oversimplified since service details east of Bramalea are not yet required at this stage of that project which is focused on the tracks west of Bramalea.

In my service concept:
- Trains coming in from Kitchener or London should not stop at Malton, due to its lack of regional importance. However they should stop at Mount Dennis and/or Bloor-Dundas due to their rapid transit connections.
- Given that there are 3 tracks west of Pearson Junction, it is possible to run 2 local trains per hour to Bramalea, providing some extra connectivity and frequency to local stations. If the quad track were extended west through Malton station, it would become possible to run 4 tph local to Bramalea, providing an interleaved 8-minute service east of Pearson Junction. The at-grade conflict at Pearson Junction is not a problem with two 4tph services as long as the services are regular and reliable (which the local services would be).

Split lines represent peak-only services

Last edited:
Thanks to the SmartTrack station consultations over the past few weeks, we now have a full end-to-end picture of the track configuration that Metrolinx envisages for the Weston Subdivision.

I have combined the conceptual track layout from the New Track and Facilities EA (massive PDF here) with the illustrated platform layouts from the St. Clair/Old Weston (Stockyards) and King/Liberty (Liberty Village) public consultations to create a diagram of the tracks proposed by Metrolinx for the relatively near future:

View attachment 369757
View attachment 369756
In general I am very pleased with this proposed design, as it will be able to support a substantial amount of service. My biggest concern is that Metrolinx does not seem to be rationalizing the 4 tracks in to express/local pairs. This creates a number of problems:
1. Providing platforms on all 4 Kitchener Line tracks at Liberty Village requires eliminating at least 1 of the planned Barrie Line and Milton Line tracks. The conceptual site plan from the 18 November public consultation shows the Milton line being reduced to a single track, rather than the double track which had always been planned until now. Furthermore it shows the northbound Barrie Line track crashing into the north pier of the station's overpass at Sudbury Street.
View attachment 369759

2. As I have described before, mixing high-frequency local and express services on the same tracks severely limits the speed and reliability of express services. If local service runs every 15 minutes, then the express service can be at most 7 minutes faster than it before catching up to it. Today's express service is already 12 minutes faster than local services, and the number of local stations is only going to increase further. At a service planning level, Metrolinx does seem to be aware of this limitation, given that on Page 28 of the 2021 Kitchener Expansion Business Case analysis it states that all trains continuing west of Pearson junction (Wice) will operate express.
View attachment 369760
This, combined with the lack of talk of a rail-to-rail grade separation at said junction, suggests that the concept is for the north pair of tracks to serve express services, while the south pair is primarily used by a local service to the airport.

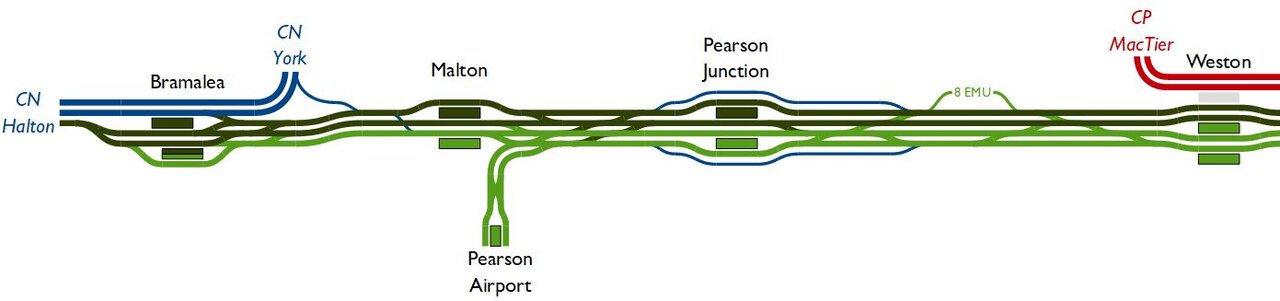

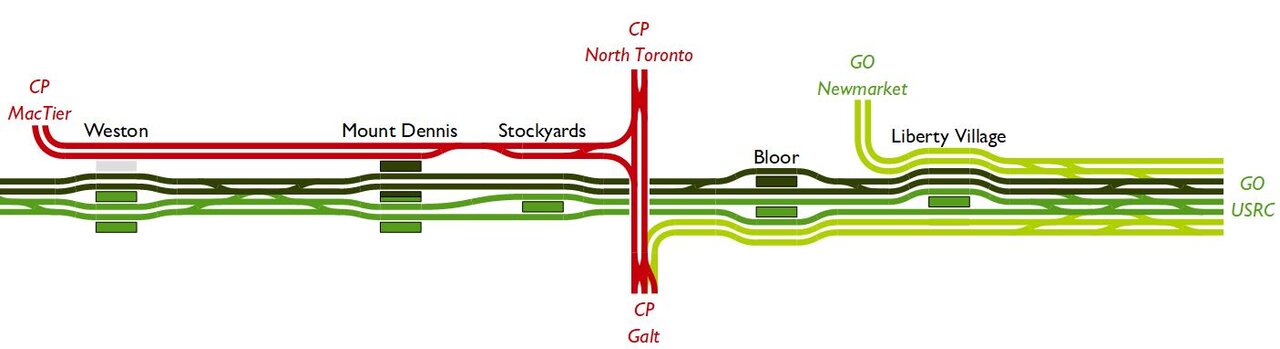

Here is how I would rationalize the track configuration to better suit that arrangement. I have reduced the two SmartTrack stations to a single island platform on the local tracks, to reduce construction costs and ensure that all 8 tracks can be maintained at Liberty Village. I have also slightly altered Pearson (Wice) and Bramalea (Halwest) junctions to reduce conflicts.
I have coloured the "express" pair in a much darker shade of green, purely to illustrate the typical use of each track.

View attachment 369766
View attachment 369767
View attachment 369765

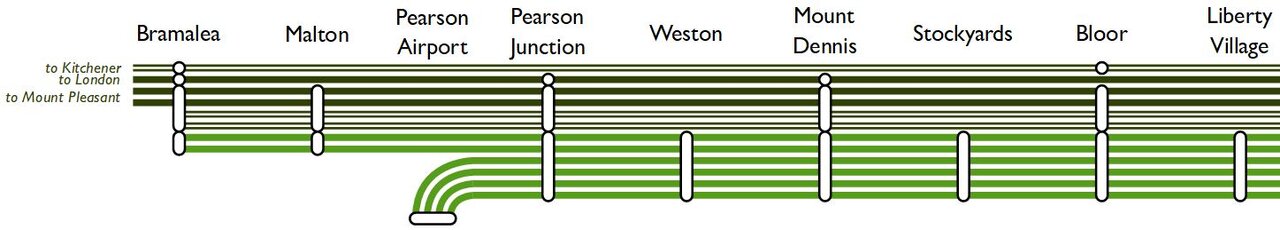

Here's a conceptual service pattern which could operate on my slightly-adjusted track layout. I have increased the variety of services compared to the pattern described in the Business Case. Their stopping patterns were probably oversimplified since service details east of Bramalea are not yet required at this stage of that project which is focused on the tracks west of Bramalea.

In my service concept:
- Trains coming in from Kitchener or London should not stop at Malton, due to its lack of regional importance. However they should stop at Mount Dennis and/or Bloor-Dundas due to their rapid transit connections.
- Given that there are 3 tracks west of Pearson Junction, it is possible to run 2 local trains per hour to Bramalea, providing some extra connectivity and frequency to local stations. If the quad track were extended west through Malton station, it would become possible to run 4 tph local to Bramalea, providing an interleaved 8-minute service east of Pearson Junction. The at-grade conflict at Pearson Junction is not a problem with two 4tph services as long as the services are regular and reliable (which the local services would be).

Split lines represent peak-only services
View attachment 369764
Wait so we're doing the whole "each service gets its own half of the ROW" thing like they're now going to do in the shared Stouffville/LSE corridor? That seems extremely silly...
