mburrrrr
Senior Member

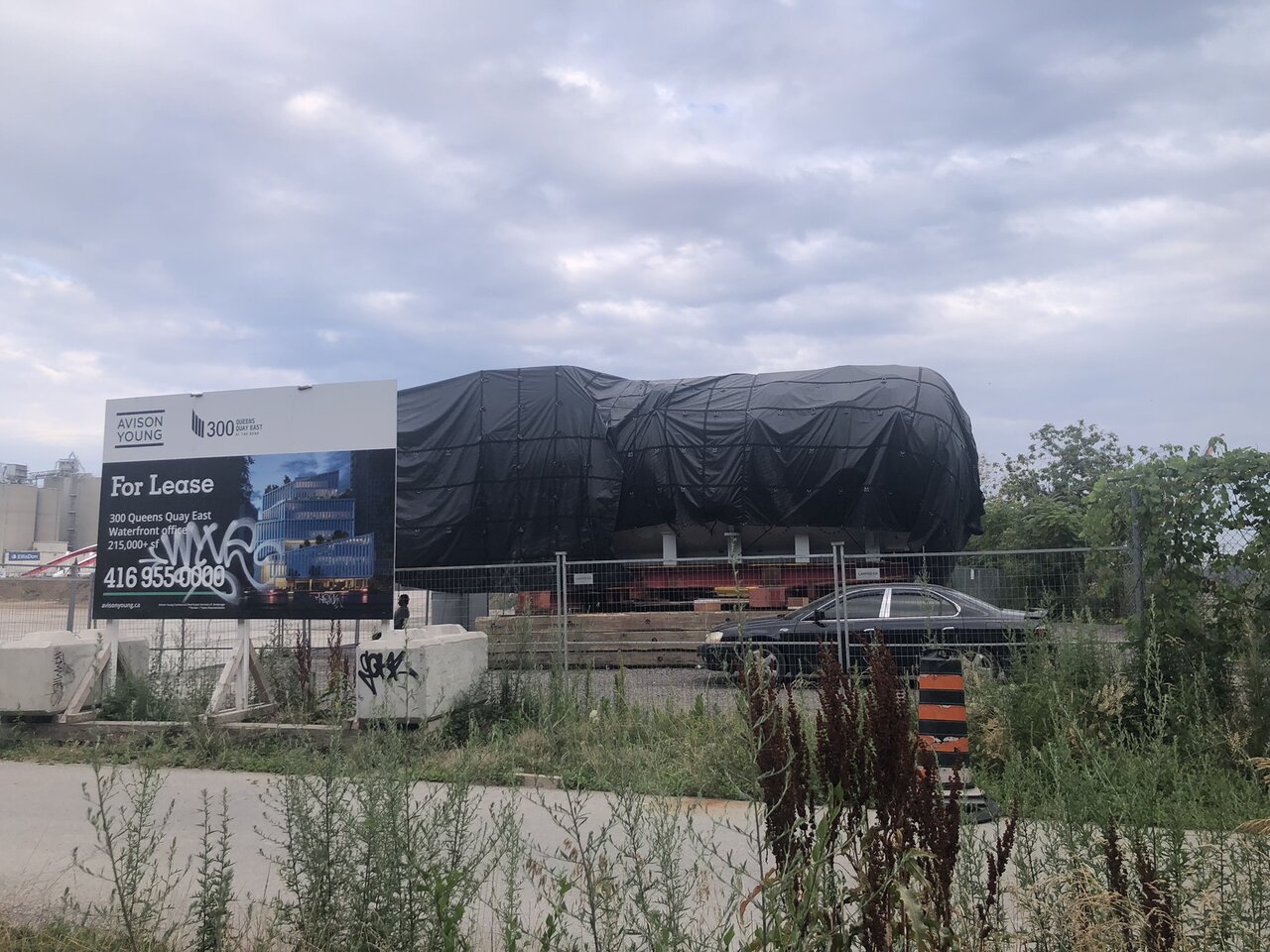

Maybe delivering these transformers tonight/ tomorrow?
Picture from July 27 near the former tent city
Picture from July 27 near the former tent city
throwawayoct2022
New Member
I've done my part and provided the "tip". Unfortunately, there's nothing else I'm comfortable sharing, and wont be commenting further.
mburrrrr
Senior Member
I was a little late to the party.
Lifting in the 3 new, second batch, of Toshiba transformers.
Lifting in the 3 new, second batch, of Toshiba transformers.
Last edited:
UtakataNoAnnex
Senior Member
Looks like a warp nacelle they're hiding under there...
mburrrrr
Senior Member
Too late for #2 and too early for #3 transformer. Oh well. You get the picture. They were lifting big heavy equipment into a small hole with very little clearance.
Here is a bunch of crane or city view shots from yesterday morning. Such a beautiful morning.
It sure looks like they are holding the roof up.
I walked to the airport/silos and back, an hour later - same position.
Here is a bunch of crane or city view shots from yesterday morning. Such a beautiful morning.
It sure looks like they are holding the roof up.
I walked to the airport/silos and back, an hour later - same position.
UtakataNoAnnex
Senior Member
Whatever those are...they certainly look phat.
(...and not knowing what they are, from their bulbous shape are they supposed to contain/maintain some sort of liquid coolant or ionized gas or something?)
(...and not knowing what they are, from their bulbous shape are they supposed to contain/maintain some sort of liquid coolant or ionized gas or something?)
pesto
New Member
Perhaps they are matter/anti-matter chambers?
mburrrrr
Senior Member
Toshiba's Gas Insulated Transformer (GIT) is the most technologically advanced solution for hydro-power and underground substations, densely populated cities, mission critical substations, and offshore substations. Toshiba GITs are insulated with SF 6 gas rather than traditionally hazardous oil which risks fire, explosions, and contaminating leaks.
Additional advantages include reduced footprint and minimal long-term maintenance requirements. Toshiba has installed a base of more than 1400 units since delivering the first GIT in 1967. Voltage ratings are available up to 500 kV and 400 MVA.
Safety Features:
See phase one post installation video.
44:15 previous delivery - very cool
Edit: same video posted two years ago just one page back. @AlvinofDiaspar
155 ton transformer. 18” to spare in the opening.
They installed 2 in phase one, 2 more in this phase two with a third for back up.
Additional advantages include reduced footprint and minimal long-term maintenance requirements. Toshiba has installed a base of more than 1400 units since delivering the first GIT in 1967. Voltage ratings are available up to 500 kV and 400 MVA.
Safety Features:
- Non-flammable
- Non-explosive
- No Oil to Check or Replace
- No Oil Leakage
See phase one post installation video.
Edit: same video posted two years ago just one page back. @AlvinofDiaspar
155 ton transformer. 18” to spare in the opening.
They installed 2 in phase one, 2 more in this phase two with a third for back up.
Last edited:
innsertnamehere
Superstar
Lol they used my old 3D models in that presentation.. nobody ever told me!
UtakataNoAnnex
Senior Member
It's almost like when the Soviets built that secret base under that shopping mall in Stranger Things, goodness...
Towered
Superstar
I think you mean deflector shield.
taal
Senior Member
Whatever happened with this, did the park actually open ?
mburrrrr
Senior Member
We checked it out Nov 6. The only thing I see stopping it from opening is some convenient contractor parking and they probably don’t want the public or maybe dogs around.
DSC
Superstar
Member Bio
- Joined
- Jan 13, 2008
- Messages
- 19,836
- Reaction score
- 28,773
- Location
- St Lawrence Market Area
Councillor Malik's office has told one of my neighbours - FROM Toronto Hydro
"Our construction work for the Copeland Station is still ongoing but is currently expected to finish by Spring 2024. We are also in the process of coordinating some final access/safety details with the City. Once these are done, there will be a few final weather-dependent landscaping tasks.
As with all things weather and construction-related, it’s challenging to give a precise date but we are hopeful that the parkette can be opened public use by early Summer."
"Our construction work for the Copeland Station is still ongoing but is currently expected to finish by Spring 2024. We are also in the process of coordinating some final access/safety details with the City. Once these are done, there will be a few final weather-dependent landscaping tasks.
As with all things weather and construction-related, it’s challenging to give a precise date but we are hopeful that the parkette can be opened public use by early Summer."
