This has 6 levels of underground from what I remember - a year until it’s above grade is probably optimistic.
In Japan, they often start going upwards at the same time as they are excavating. I watched as Toranomon Hills Business Tower was being built and they were installing windows on the 35th floor while dump trucks were coming out of the parking garage loaded with dirt.


ciceror

Active Member
Member Bio
Joined
Sep 14, 2020
Messages
260
Reaction score
502
In Japan, they often start going upwards at the same time as they are excavating. I watched as Toranomon Hills Business Tower was being built and they were installing windows on the 35th floor while dump trucks were coming out of the parking garage loaded with dirt.
Sounds crazy to go up before finishing the bottom in a country that's prone to earthquakes


indense

Active Member
Member Bio
Joined
Apr 22, 2007
Messages
204
Reaction score
24
Location
Tokyo, Japan
Sounds crazy to go up before finishing the bottom in a country that's prone to earthquakes
They drive giant steel beams down into the ground (to bedrock?) and then attach the building’s steel frame to these anchor beams. As they excavate the basement floors, they install braces between the beams. The parking garage ramps and the subfloor are all metal welded to the braces. The excavator and dump trucks all stay on the metal ramps as they snake their way down. Other bonuses: allows for smaller dump trucks so no giant trucks on city streets and from the start of construction, no vehicle tire touches dirt.

For earthquakes, I think most of the dampening features are at the top so I worry about any tall building before it’s completed.


Undead

Senior Member
Member Bio
Joined
Sep 3, 2020
Messages
2,864
Reaction score
7,375
Location
Condoland
For earthquakes, I think most of the dampening features are at the top so I worry about any tall building before it’s completed.
Dampers can be and are installed during construction, although that's for bridges, but I'm sure it can also be done for buildings.


Bjays92

Senior Member
Member Bio
Joined
Jan 9, 2020
Messages
1,346
Reaction score
3,571
Location
Cambridge Ontario
Dampers can be and are installed during construction, although that's for bridges, but I'm sure it can also be done for buildings.
Mass tuned dampers are included in pretty much any building over a certain height. They are not used just for earthquakes but also to reduce wind sway and mitigate resonance events in skyscrapers which can be incredibly dangerous.

Last edited:

Undead

Senior Member
Member Bio
Joined
Sep 3, 2020
Messages
2,864
Reaction score
7,375
Location
Condoland
Yes, I know what a TMD does. My point is that it can be installed *during* construction to mitigate construction specific vibration and wind issues.


skycandy

Senior Member
Member Bio
Joined
Mar 25, 2015
Messages
1,910
Reaction score
24,074
Location
South Riverdale
What a difference a week makes. 168 little hours...

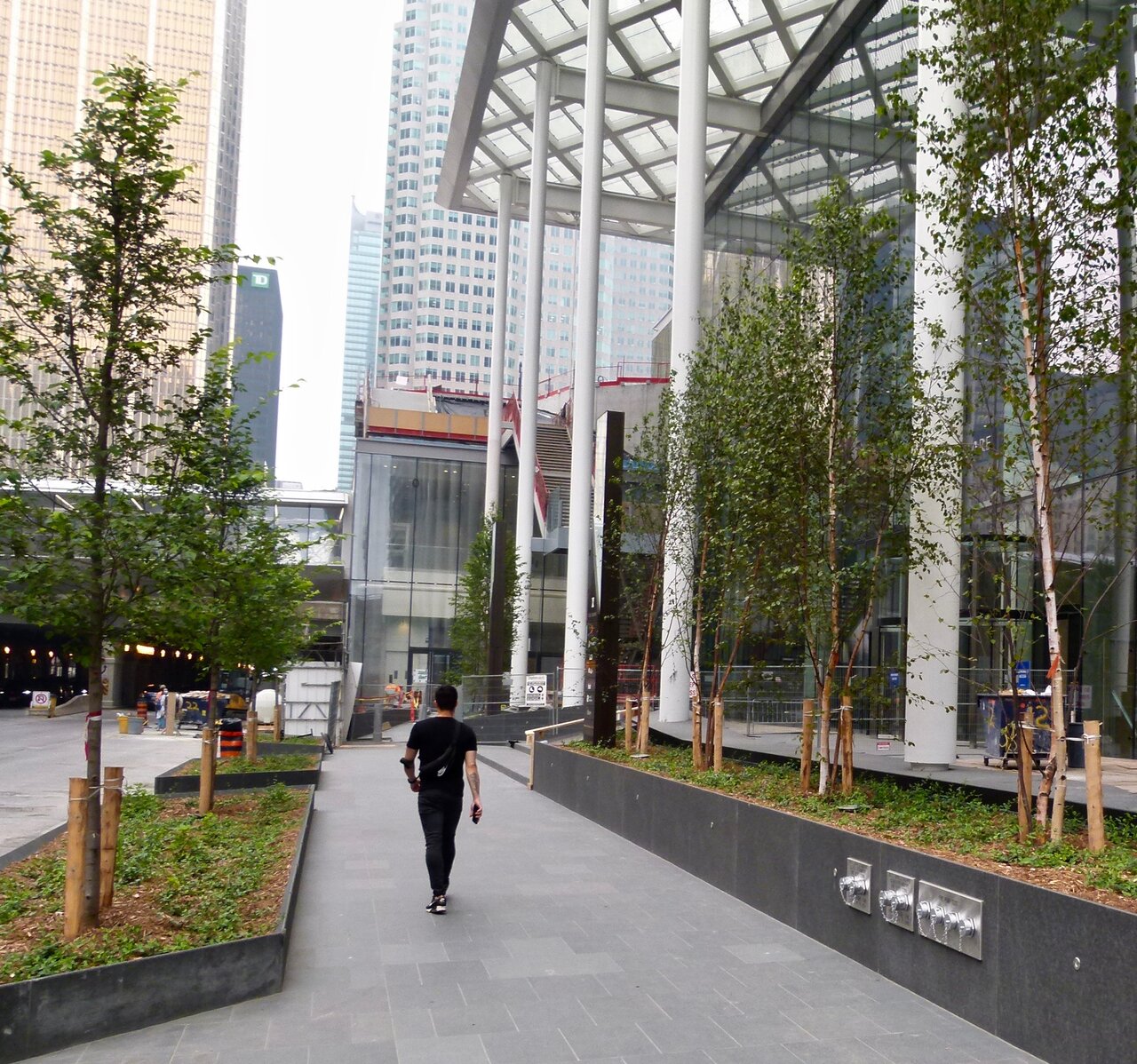

Happy plants...

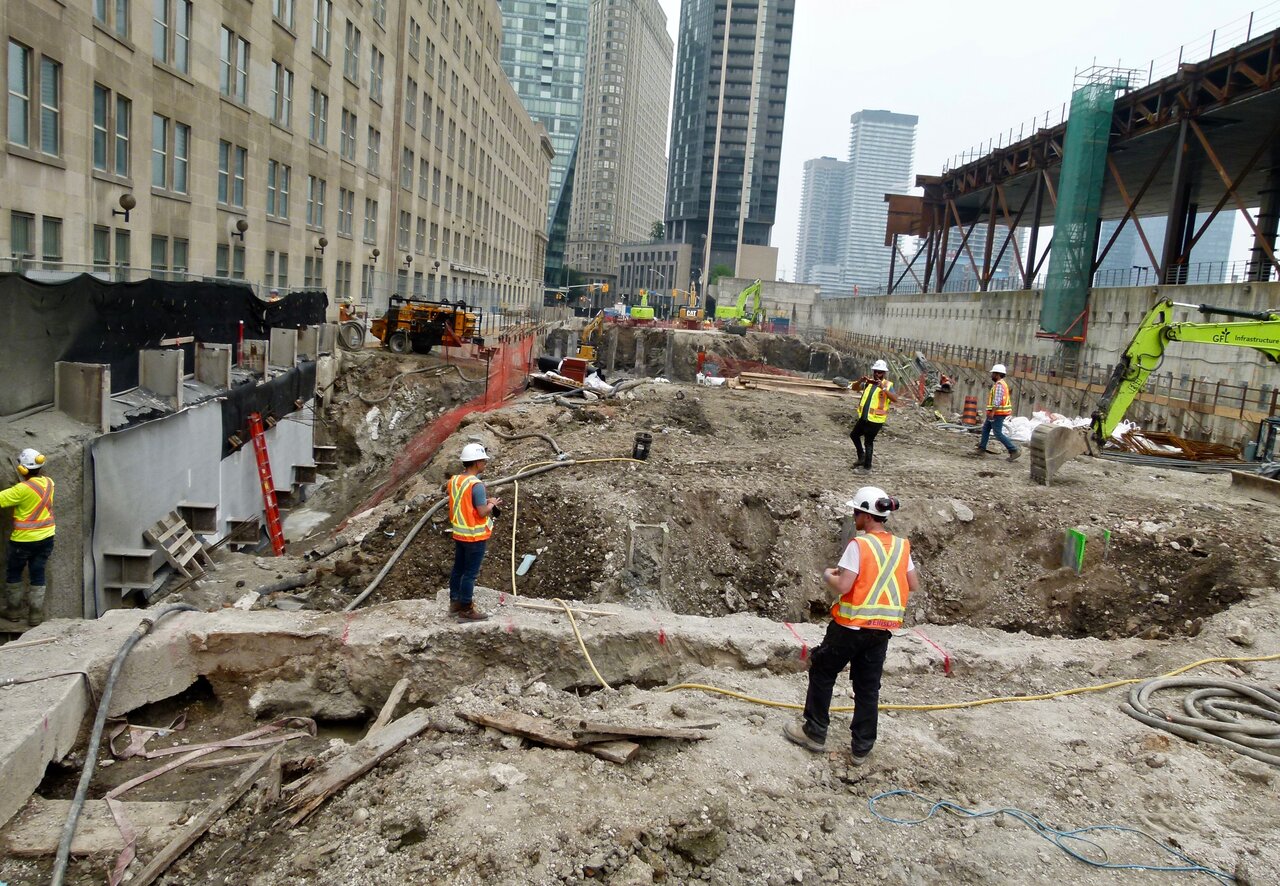

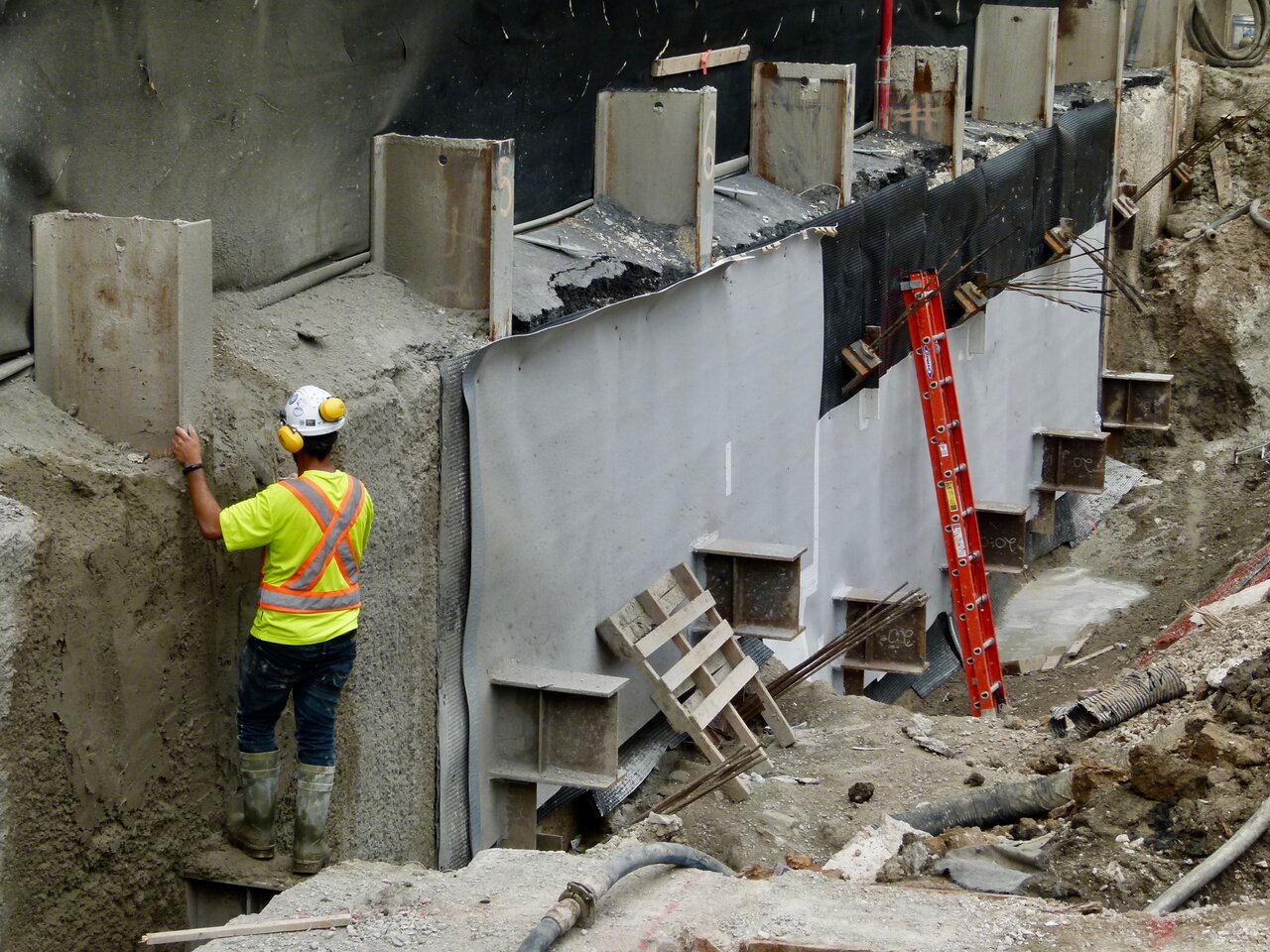

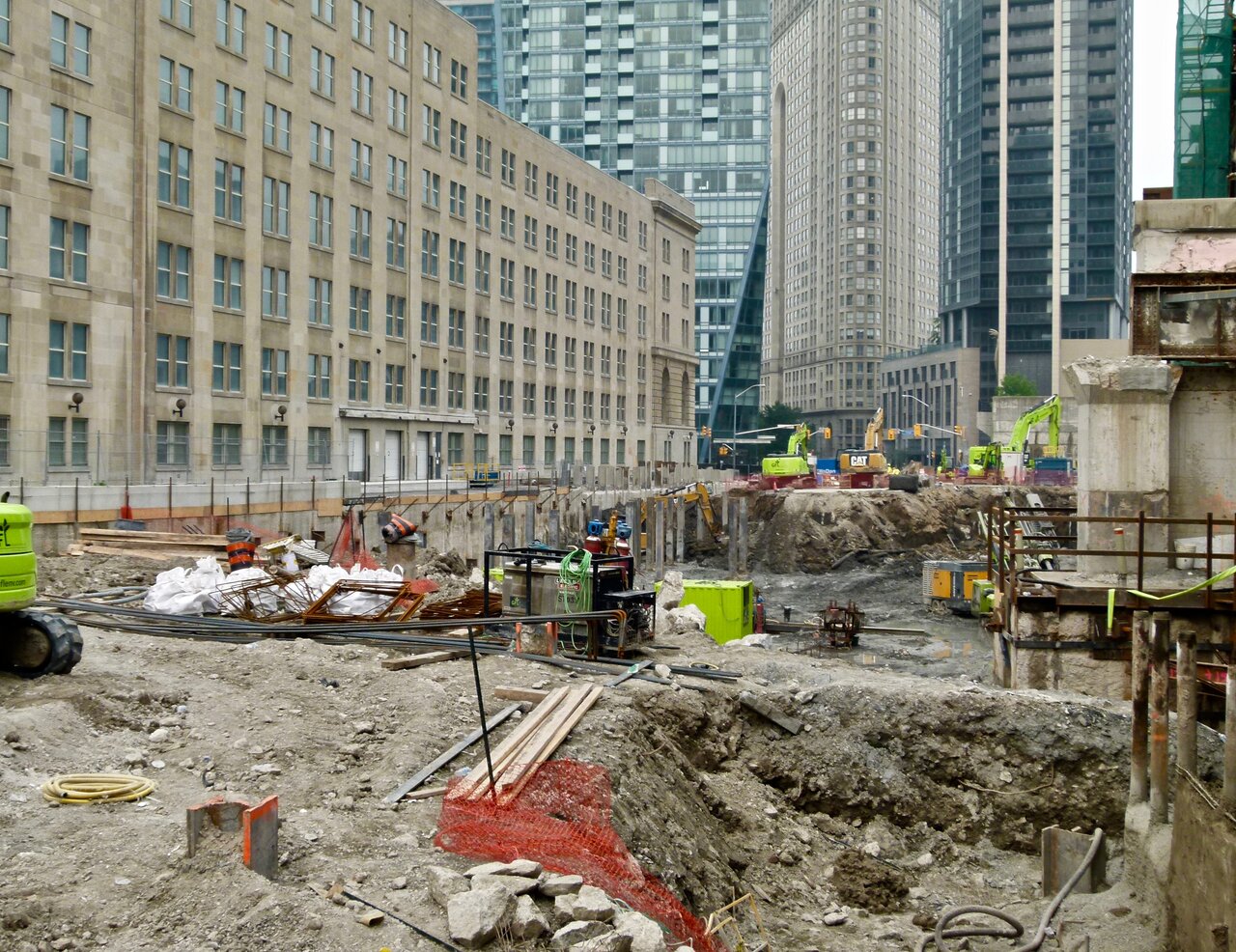

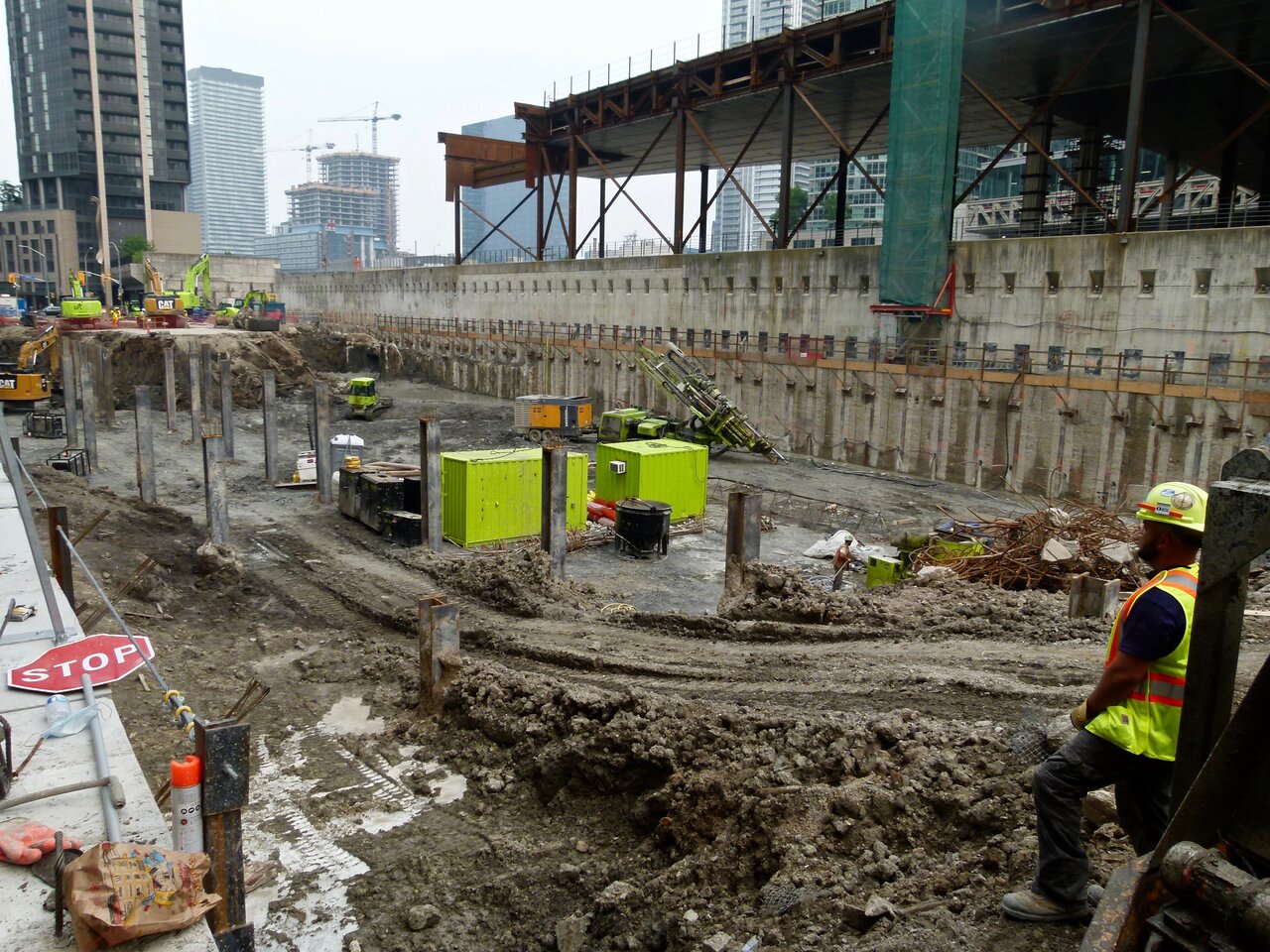

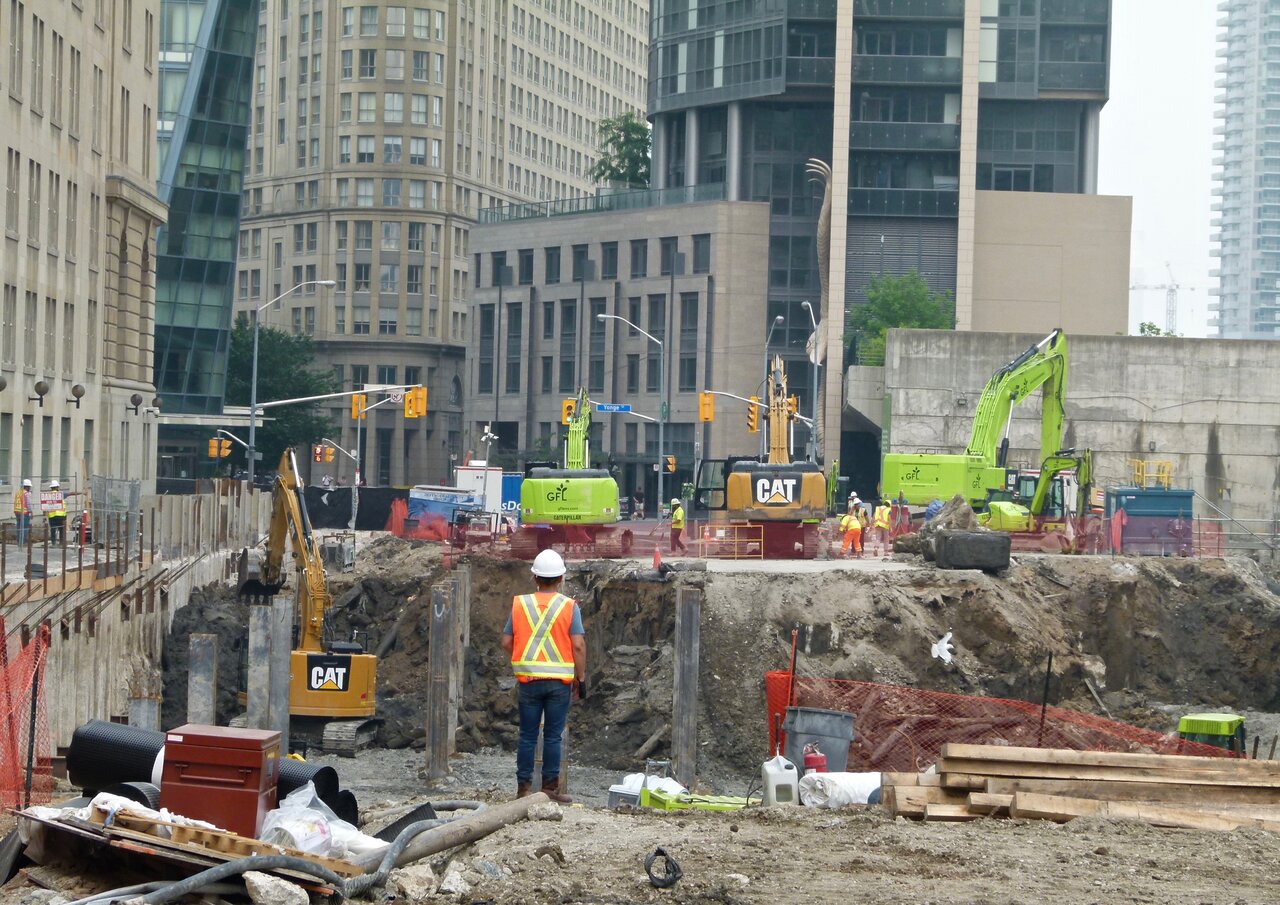

Staring into the growing abyss.







The smoky pall around 5 PM...



Attachments

  • P1230883.jpg
    360.8 KB · Views: 103

Irishmonk

Senior Member
Member Bio
Joined
Apr 29, 2007
Messages
2,014
Reaction score
1,288
Location
London, Ont
Wow, does this tower ever make its neighbours look even more execrable by comparison. Pinnacle should be hanging its head in eternal shame for its quartet of uglies.

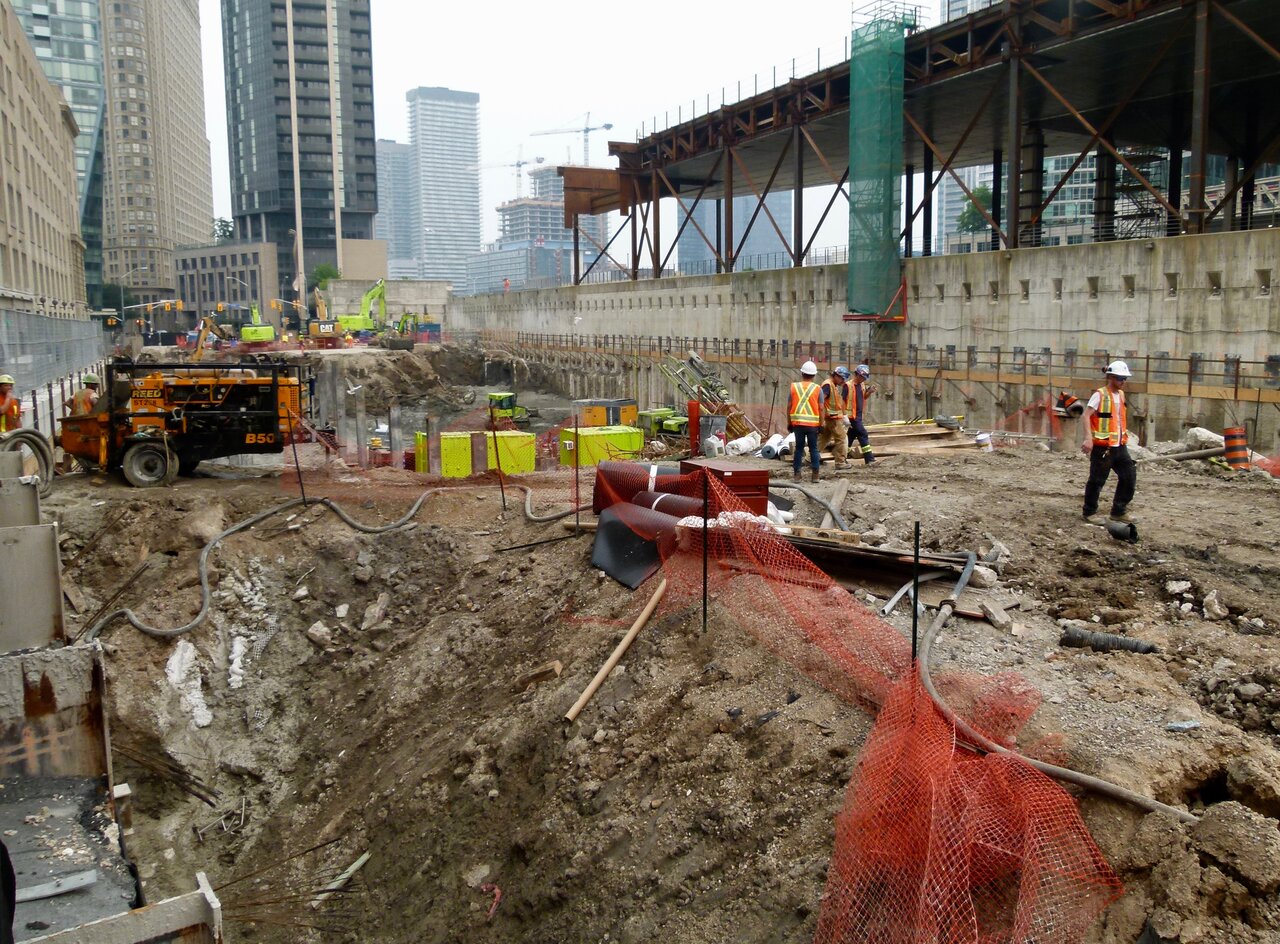

On another note: it's astonishing how fast the excavation is proceeding for Tower 2; at this torrid pace it might actually be finished before The One.
