Mississauga Artform | ?m | 17s | Emblem Developments | Studio JCI

July 12
Lot more up on my site

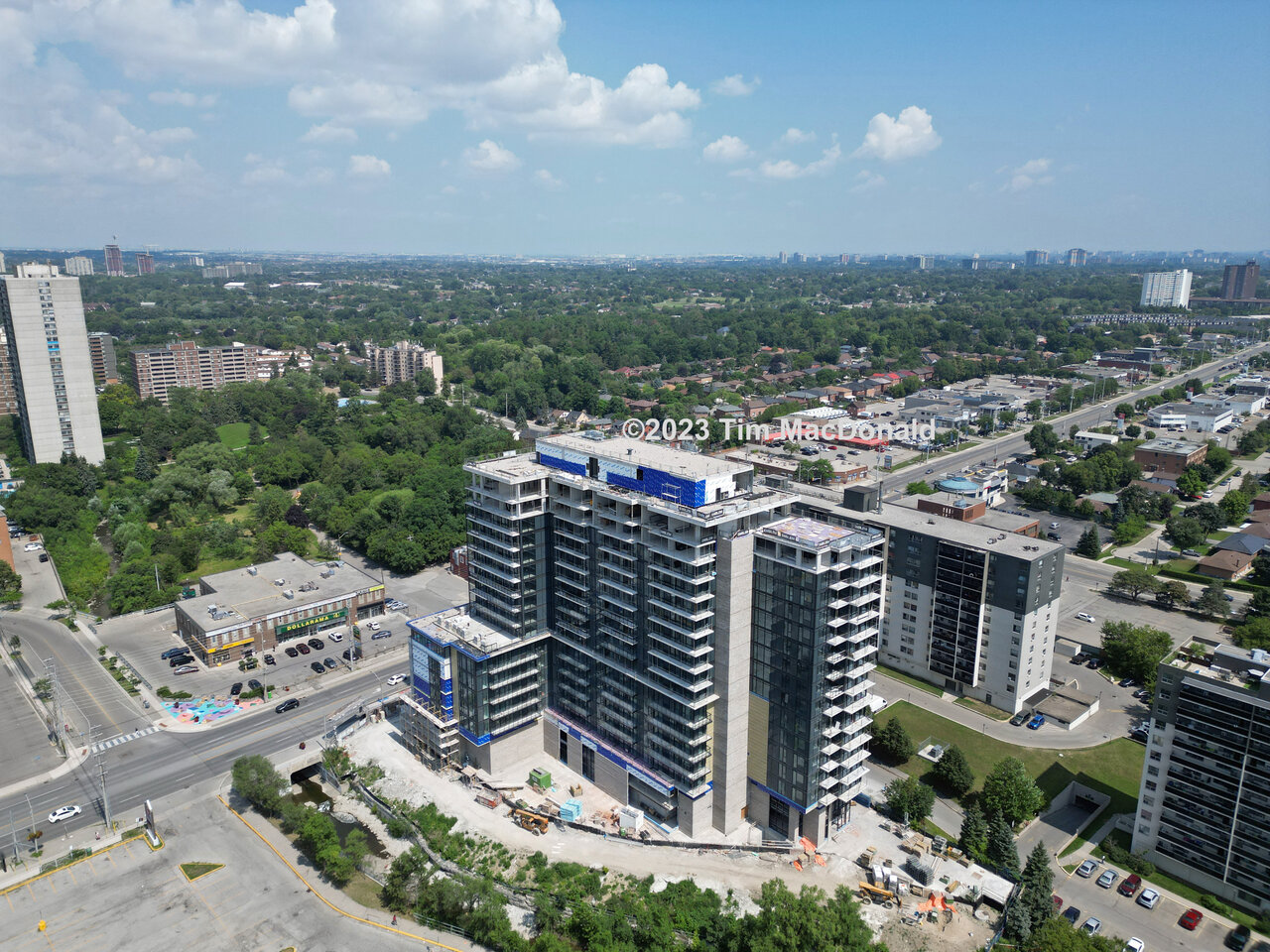

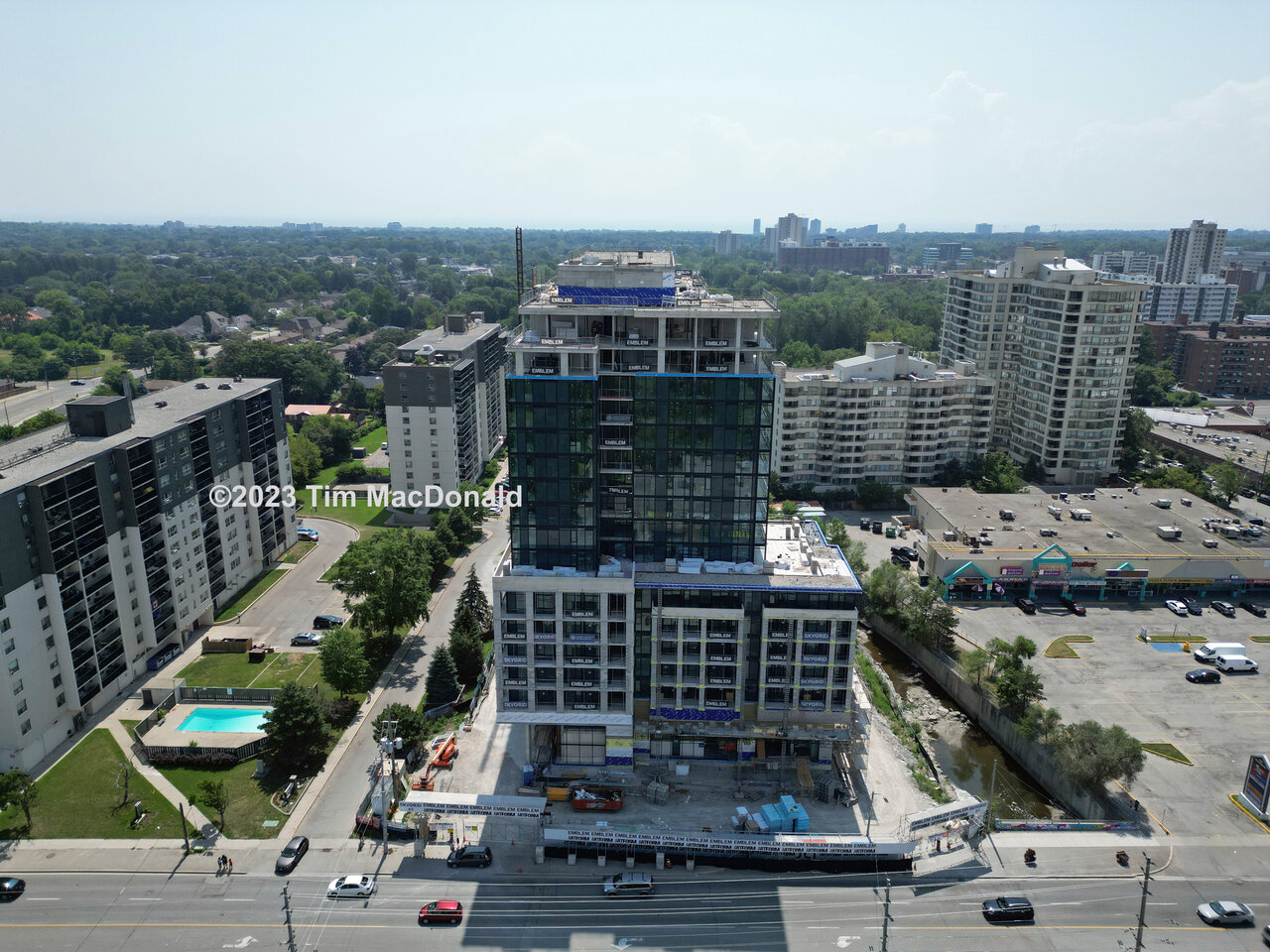

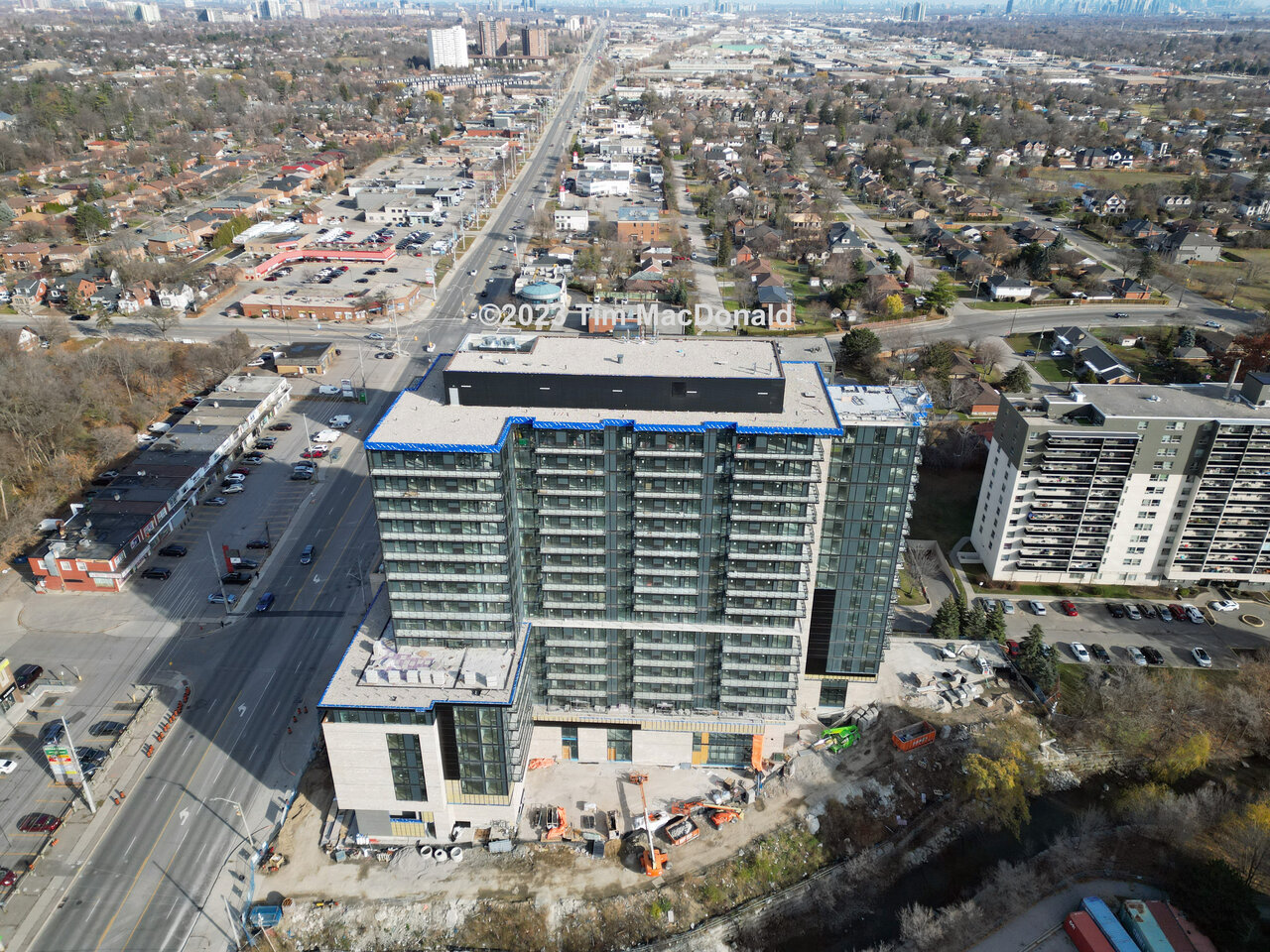

The building looks different with the 2nd crane gone that came down on Monday. Brickwork underway starting at the south end and not gun hole on the colour






Oct 4

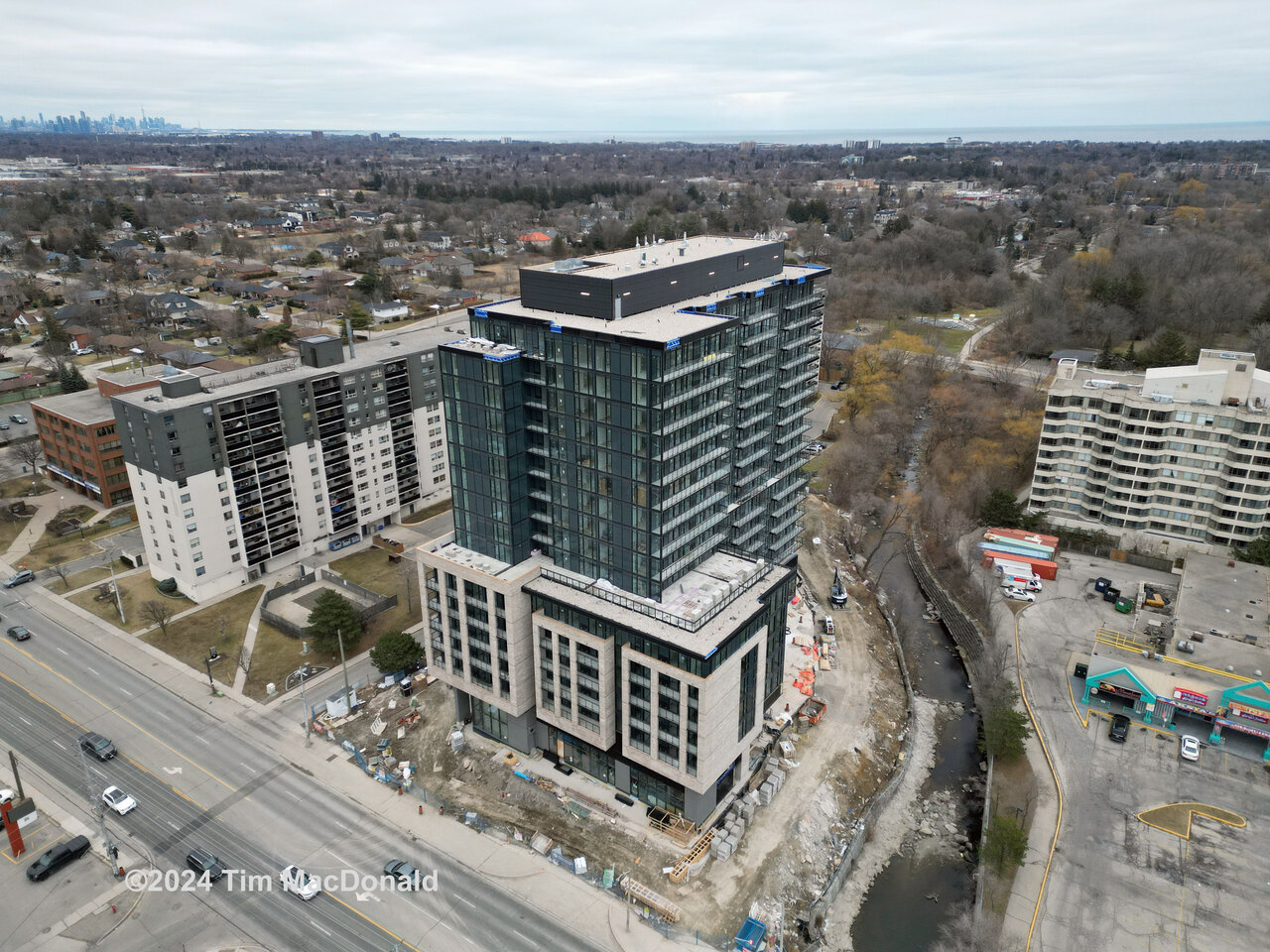

Lot more up on my site,

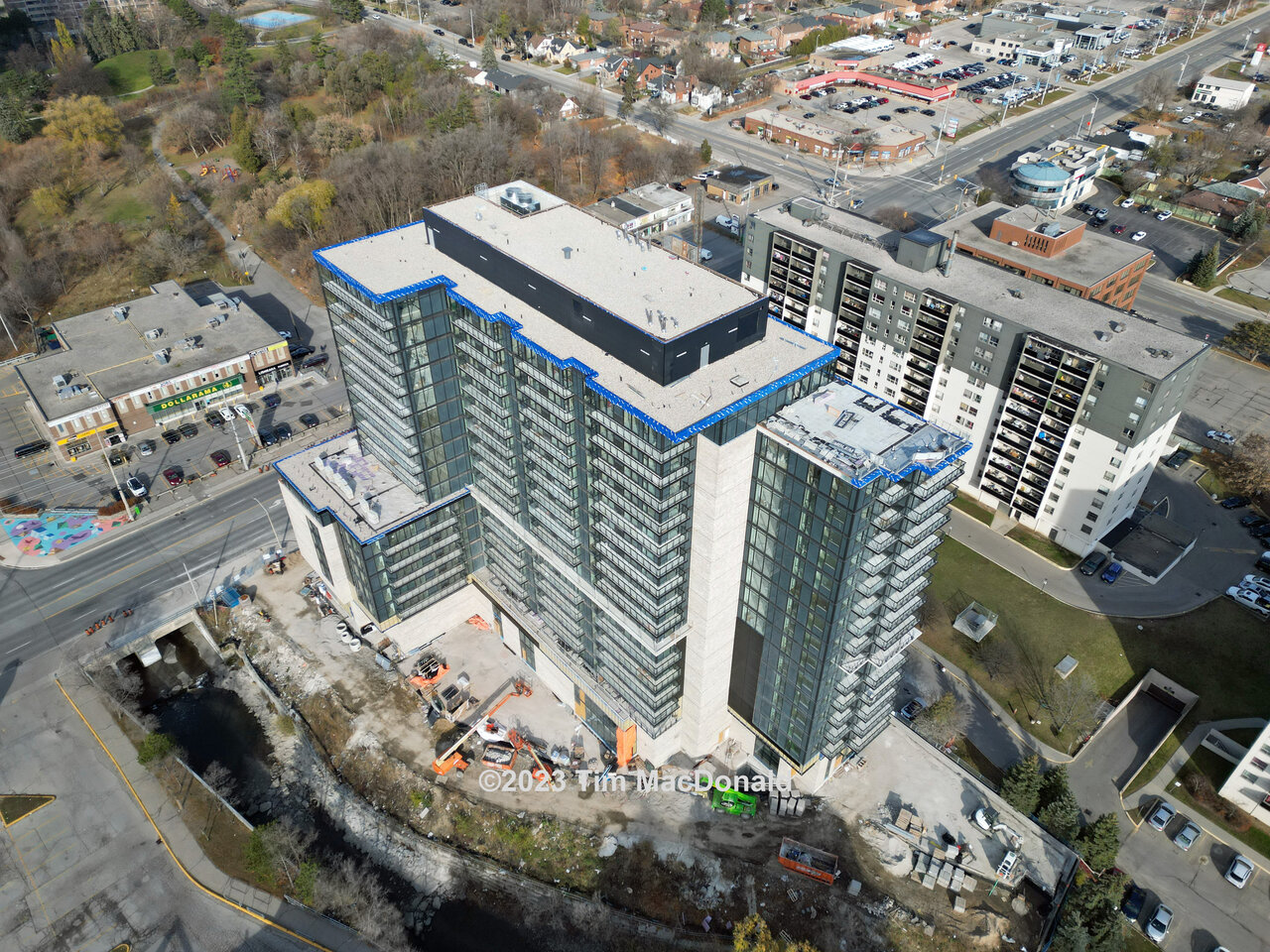

Using 2 different brick colours








Last edited:
Going to the Committee of Adjustments on April 4 and find this odd considering the building is built

Details of the application and meeting information:
The property owner of 86 and 90 Dundas Street East, zoned RA4-52- Residential, has applied for a minor variance under Section 45 of the Planning Act. The applicant requests the Committee to approve a minor variance to allow a building proposing:
1. A parking space dimension of 2.55m wide x 5.00m long (approx. 8.37ft x 16.40ft) whereas By-law 0225-2007, as amended, requires a minimum parking space dimension of 2.60m wide x 5.20m long (approx. 8.53ft x 17.06ft) in this instance;
2. A walkway width within a landscape buffer wider than 1.20m (approx. 3.94 ft) whereas By-law 0225-2007, as amended, permits a maximum walkway width of 1.20m (approx. 3.94ft) in this instance;
3. A roof overhang whereas By-law 0225-2007, as amended, does not permit a roof overhang in this instance;4. A balcony projection of 3.50m (approx. 11.48ft) whereas By-law 0225-2007, as amended, permits a maximum balcony encroachment of 2.00m (approx. 6.56 ft) in this instance;
5. A rooftop balcony setback of 0m whereas By-law 0225-2007, as amended, requires a minimum rooftop balcony setback of 1.20 m (approx. 3.94 ft) from all exterior edges in this instance;
6. An amenity space of 4.80 sq m (approx. 51.67 sq ft) whereas By-law 0225-2007, as amended, requires a minimum amenity space of 4.90 sq m (approx. 52.74 sq ft) in this instance;
7. A medical office use whereas By-law 0225-2007, as amended, does not permit a medical office use in this instance;
8. A parking space obstruction of 2.55 m (approx. 8.37 ft) whereas By-law 0225-2007, as amended, requires a minimum parking space obstruction of 2.75 m (approx. 9.02 ft) in this instance;
9. A balcony projection whereas By-law 0225-2007, as amended, does not permit a balcony projection in this instance; and,
10. A balcony and building roof projection whereas By-law 0225-2007, as amended, does not permit a balcony and building roof projection in this instance.
