Finch West Line 6 LRT

fanoftoronto said:
The Sheppard East extension of Line 4 would mean they'll be running 6-car trainsets instead of 4-car trainsets of Toronto Rocket trains
Click to expand...
You keep saying this, but there is literally no need. The 4 car trains aren't usually crammed even in rush hour, if we need more capacity run more 4 car trains - which there is lots of room to do.

superelevation said:
You keep saying this, but there is literally no need. The 4 car trains aren't usually crammed even in rush hour, if we need more capacity run more 4 car trains - which there is lots of room to do.
Click to expand...

Please read my comment again.

fanoftoronto said:
The Sheppard East extension of Line 4 would mean they'll be running 6-car trainsets instead of 4-car trainsets of Toronto Rocket trains exactly the same as Line 1.
Click to expand...

They'll switch to 6-car trains once the subway is extended to McCowan and Sheppard to meet the Line 2 extension. I know there's barely demand for even 4-car trains right now.

superelevation said:
You keep saying this, but there is literally no need. The 4 car trains aren't usually crammed even in rush hour, if we need more capacity run more 4 car trains - which there is lots of room to do.
Click to expand...
I could see it if the Line 4 extension connects with Line 2 SSE and the lines become effectively merged. Then any future higher order transit that extends east of McCowan would be a new line (replacing the Ellesmere BRT when that becomes necessary). I know the SSE is not designed with this in mind, but a Line 4 extension could still accommodate this. It would provide for a lot more one seat rides to STC and NYCC, without losing much opportunity in extending Line 2 further north--I think that would be rather silly, and better accomplished through upgrading the Stouffvile line, OL extension or a new NS line with cheaper technology. Worst case, perhaps we could leave the option to branch Line 2 for northern extension, since the current Line 4 would not require the same level of service.

fanoftoronto said:
They'll switch to 6-car trains once the subway is extended to McCowan and Sheppard to meet the Line 2 extension. I know there's barely demand for even 4-car trains right now.
Click to expand...
I doubt they'd switch to 6-car trains. There's no indication that ridership will significantly increase. And if it did, it would make a lot more sense to run trains 4 minutes at peak, than extend the platforms. That would have the same capacity increase as extending the platforms.

It would be better service too, being more frequent.

afransen said:
I could see it if the Line 4 extension connects with Line 2 SSE and the lines become effectively merged. Then any future higher order transit that extends east of McCowan would be a new line (replacing the Ellesmere BRT when that becomes necessary). I know the SSE is not designed with this in mind, but a Line 4 extension could still accommodate this. It would provide for a lot more one seat rides to STC and NYCC, without losing much opportunity in extending Line 2 further north--I think that would be rather silly, and better accomplished through upgrading the Stouffvile line, OL extension or a new NS line with cheaper technology. Worst case, perhaps we could leave the option to branch Line 2 for northern extension, since the current Line 4 would not require the same level of service.
Click to expand...
It's unlikely to happen. The SSE will have its station north of Sheppard Avenue. That means in order to build the Sheppard Line to through run it would have to do a BIG loop around North. Doing so just to provide more convenient access to STC isn't worth it, especially when it effectively blocks off any future extensions either north or east. North you could have Line 2 surface onto the Mactier Sub and head to serve the developing communities around Cornell and Locust Hill, meanwhiel Line 4 can always continue east towards Malvern, the Zoo, Pickering, whatever.

ARG1 said:
It's unlikely to happen. The SSE will have its station north of Sheppard Avenue. That means in order to build the Sheppard Line to through run it would have to do a BIG loop around North. Doing so just to provide more convenient access to STC isn't worth it, especially when it effectively blocks off any future extensions either north or east. North you could have Line 2 surface onto the Mactier Sub and head to serve the developing communities around Cornell and Locust Hill, meanwhiel Line 4 can always continue east towards Malvern, the Zoo, Pickering, whatever.
Click to expand...
You could have Line 4 branch prior to McCowan - 4A heads to Sheppard/McCowan station, 4B connects onto the Line 2 tracks and runs to STC. You'd need to build decent turnaround infrastructure at STC for the service to be able to run decent headways though. I think the idea has some merit down the road.

duffo said:
You could have Line 4 branch prior to McCowan - 4A heads to Sheppard/McCowan station, 4B connects onto the Line 2 tracks and runs to STC. You'd need to build decent turnaround infrastructure at STC for the service to be able to run decent headways though. I think the idea has some merit down the road.
Click to expand...
The only way this could work is if they're going to turn back half of the Line 2 trains at Kennedy (which they might be toying with doing), but I'm pretty sure there isn't room at STC for turnaround infrastructure. The is being built with a Single Bore (thus it's a side platform station), and there won't be enough room for a turnback track.

ARG1 said:
The only way this could work is if they're going to turn back half of the Line 2 trains at Kennedy (which they might be toying with doing), but I'm pretty sure there isn't room at STC for turnaround infrastructure. The is being built with a Single Bore (thus it's a side platform station), and there won't be enough room for a turnback track.
Click to expand...

It worked at Keele and Woodbine stations when they were new.

Transportfan said:
It worked at Keele and Woodbine stations when they were new.
Click to expand...
We're not talking about terminating a line here, we're talking about short turning trains. We have to somehow have to coordinate Line 2 trains running from Kennedy to Sheppard-McCowan, and a line 4 spur that runs from STC to west along Sheppard. In essence, we need to somehow turnaround Line 4 trains at STC without heavily conflicting with Line 2 trains that are passing through the station as if it's a normal station.

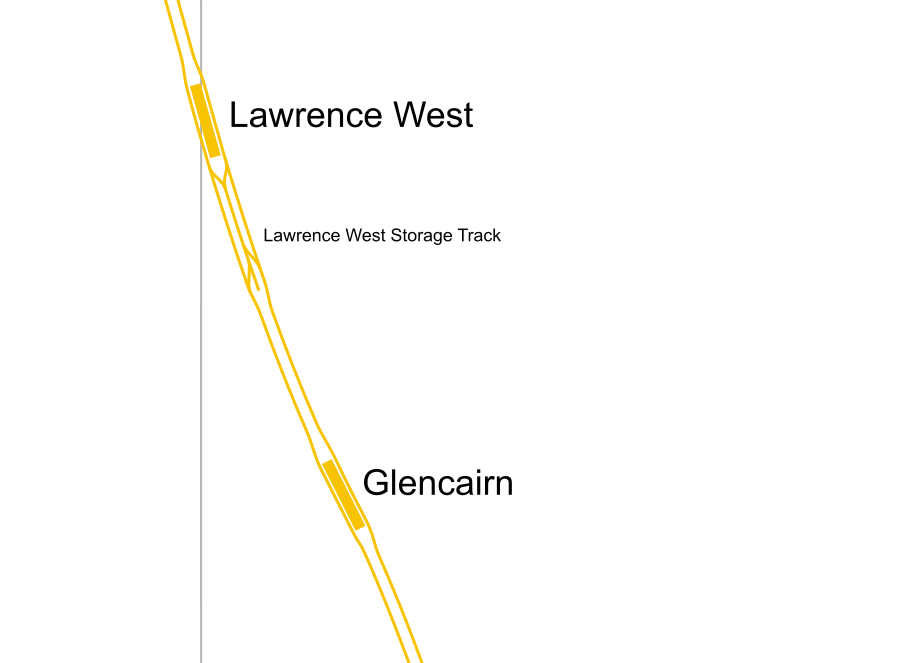

The point I was trying to get at is that at stations like Glencairn where you can find trains short turning, you can usually find storage tracks of sorts that can be used to store trains in order to have them fit nicely into opposing rail traffic. In the case of Glencairn, trains will drop passengers off at the northbound platform, head to the Lawrence West storage track, wait for the next available slot, and head back out to Glencairn (Source: CartoMetro):

Meanwhile at STC, all we have to work with is this double crossover immediately north of the station (Source: RailFans Canada):

This leaves us with only 3 real possibilities:

1) Terminating Line 4 trains have to cross over to the Northbound platform, and turn around while at the station. This can only really be done if it enters the station immediately after another trains departs the northbound platform, where it will have a little under 3.5m to do a turnaround (The only way this could work is if half of the L2 trains terminate at Kennedy, and I'm also assuming that L2 has ATC and can run at 2m headways, something that this service pattern should be designed around) AND ideally it isn't being followed by another L2 train heading south from Sheppard-McCowan. The problem of course is that this is easier said than done. If that train heading north to Shep is in any way delayed, the L4 train has to sit there in front of the crossover until the northbound train passes, and in that time the next train south could arrive which can create a service knock-on effect.

2) This next option is we make use of the next turnback facility available which is immediately east of Kennedy. In short, this would extend this Line 4 spur south to Lawrence East, and trains will travel to almost Kennedy before using the storage track there. There are 2 potential issues with this: 1) The trains will have to share the storage track with the trains short turning there from the west which would have to be scheduled extremely tightly (assuming it's even possible), and 2) the storage track seems to only have an entrance on the west side, and whether or not it's possible to add track connections to the east, I cannot say.

3) This final option is a modification of Option 2 where instead of having any trains short turn at Kennedy, we instead extend the spur train to go all the way to Kipling. In essence we're creating 3 service patterns: Sheppard-Yonge to Sheppard-McCowan, Sheppard-Yonge to Kipling, and Sheppard-McCowan to Kipling. This is probably the safest option in terms of disruption, but is still likely to be prone to delays as we're now dealing with a mega line where a delay at Bessarion Station (random example) can cause a knock on effect and affect the service at Royal York.

The reality is, none of these options are that good. Any attempt to service STC using the existing Line 2 tracks will result in huge sacrifices to the reliability of both lines, and one must ask whether having a direct connection to STC is worth all of this hassle. This is even before we consider whether it's financially viable to build an infill junction box between Sheppard-McCowan and STC. It's entirely possible that doing so would be just as, if not more expensive than just building a brand new tunnel to STC. If we were to take the logic of "STC is a huge hub, that people would want/need to visit", then the obvious answer is to just build another one at Sheppard-McCowan, and have 2 major hubs surrounding the 401, one served by Lines 4, 2, and the Eglinton East LRT (assuming that gets built), and the other served by Line 2 and DSBRT.

T3G said:
Those were always intended to be temporary terminals, the extension to Warden and Islington were opened within two years.
Click to expand...

Will Sheppard East (terminus) have a regular crossover box constructed and an island platform, despite the single bore?
