I'd imagine that CP will be so happy to be rid of it that it will disappear the night after the first in-service GO train crosses the new span... :)

It won’t take long, but it’s more complicated than that, because the signalling has to be modified. Even though the diamond won’t have any opposing movements to clear, the signals protecting it have to be removed and the circuitry altered to bridge across the gap. (the “approach” signals on either side of the diamond may ned to be reprogrammed to convey different indications under different conditions, and the spacing of blocks may be changed to simplify and increase speeds).

IIRC when the West Toronto underpass was completed, the physical track components were torn out and replaced with straight rail a few days later, but, it was several months before the signal circuitry was updated, and in the interim the CP RTC’s continued to clear the signal at the ”diamond” just as if it was still there.

- Paul

Last edited:

ProjectEnd

Superstar
Member Bio
Joined
May 28, 2007
Messages
12,910
Reaction score
29,563

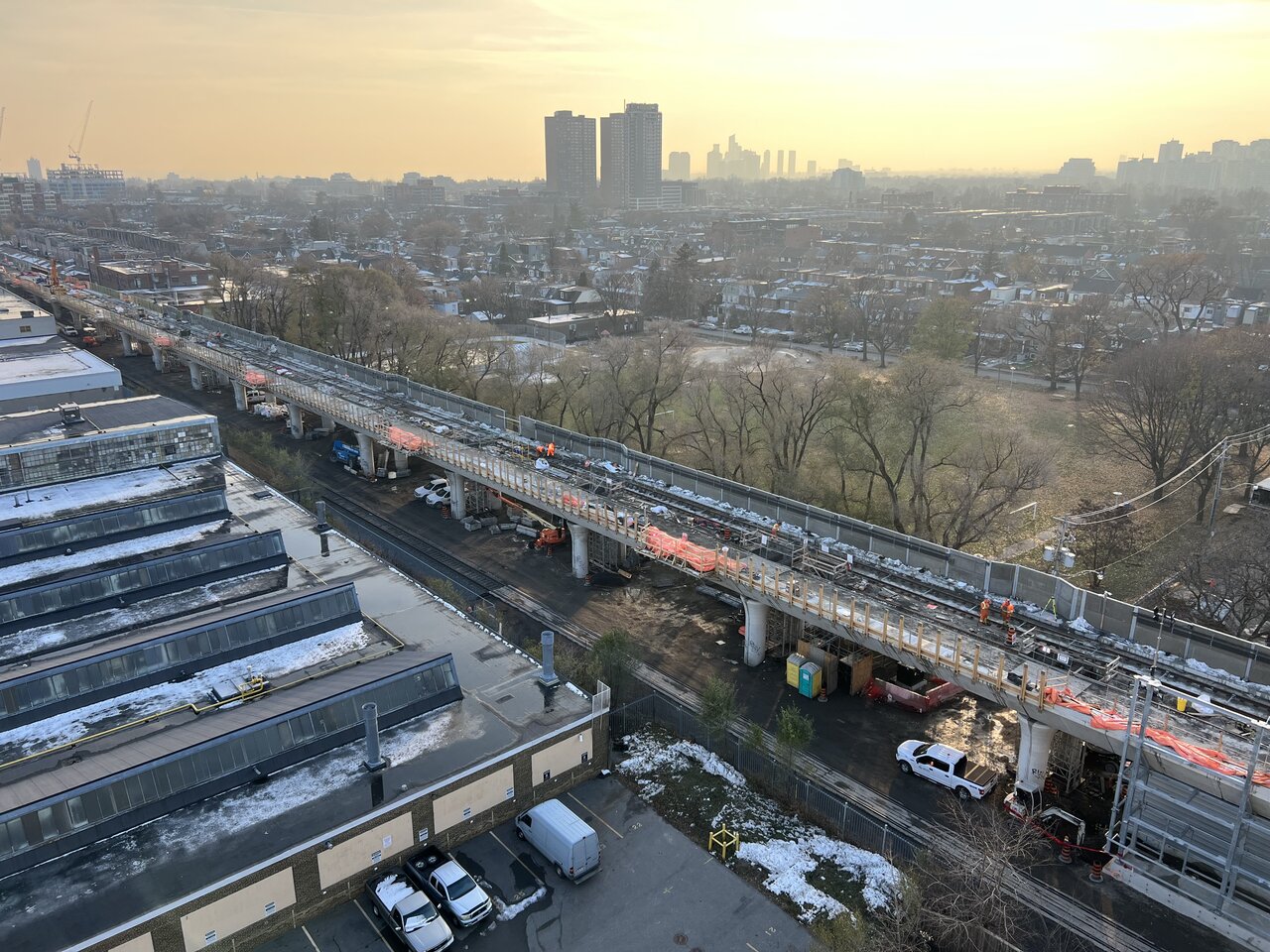

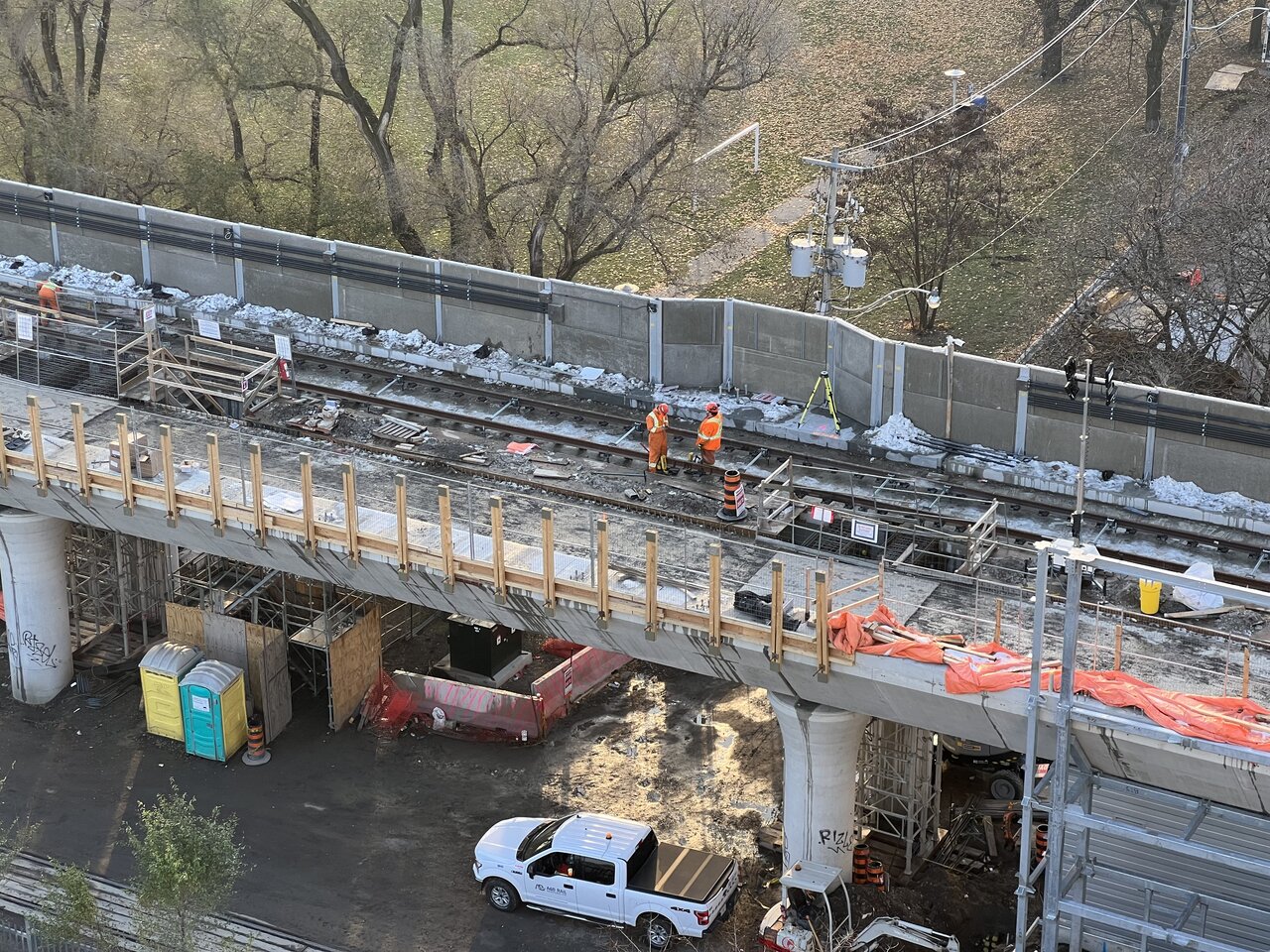

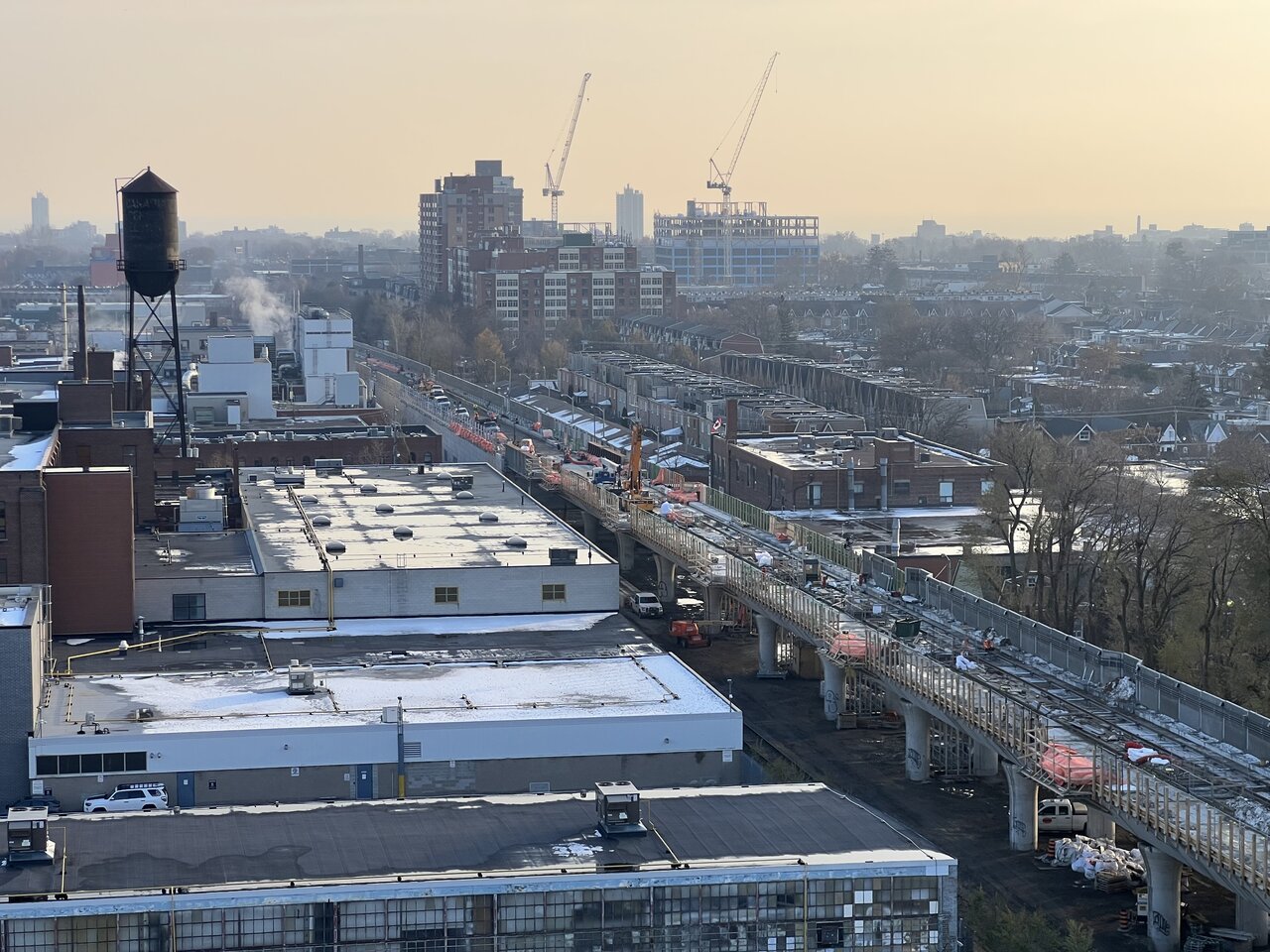

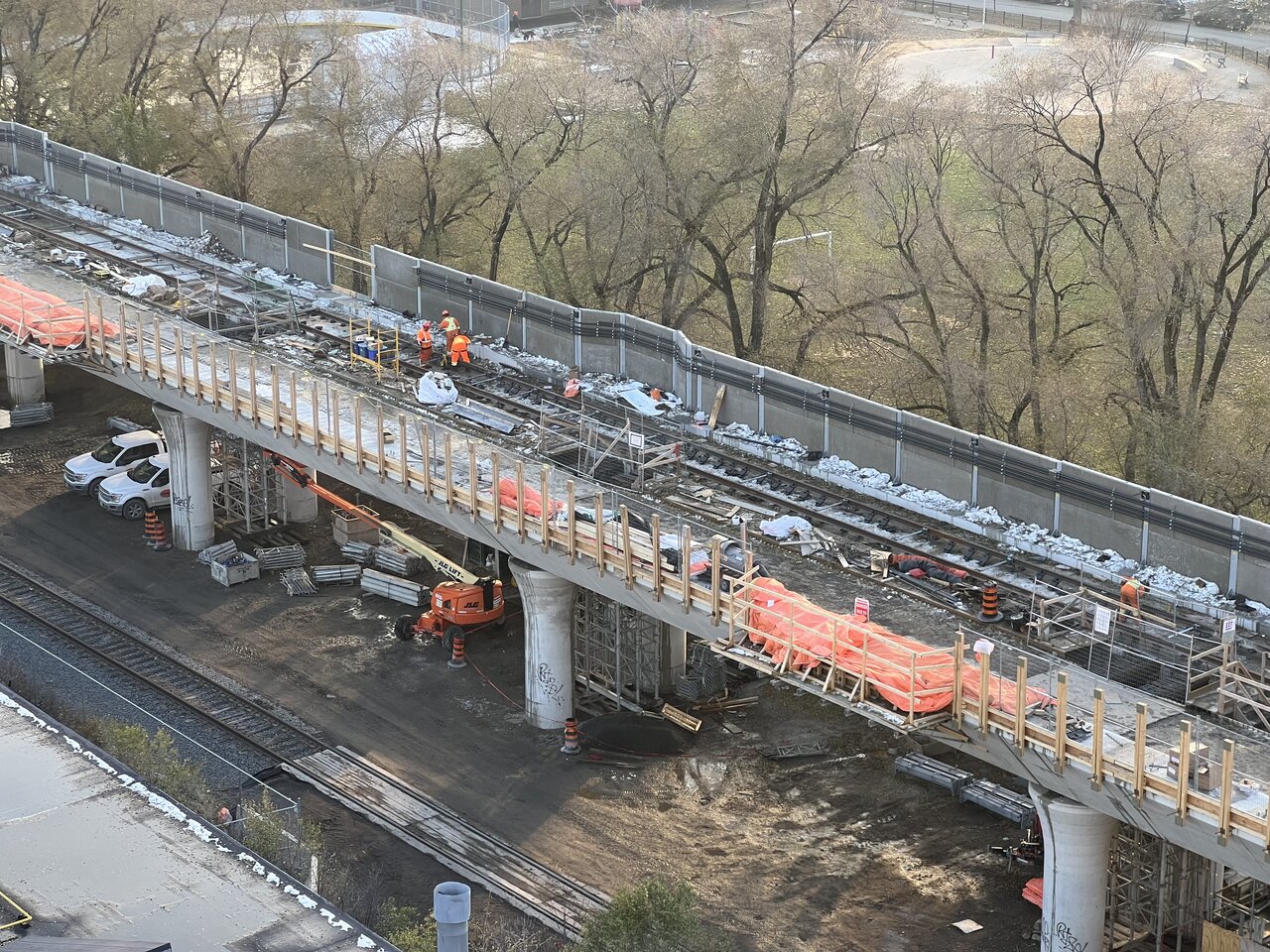

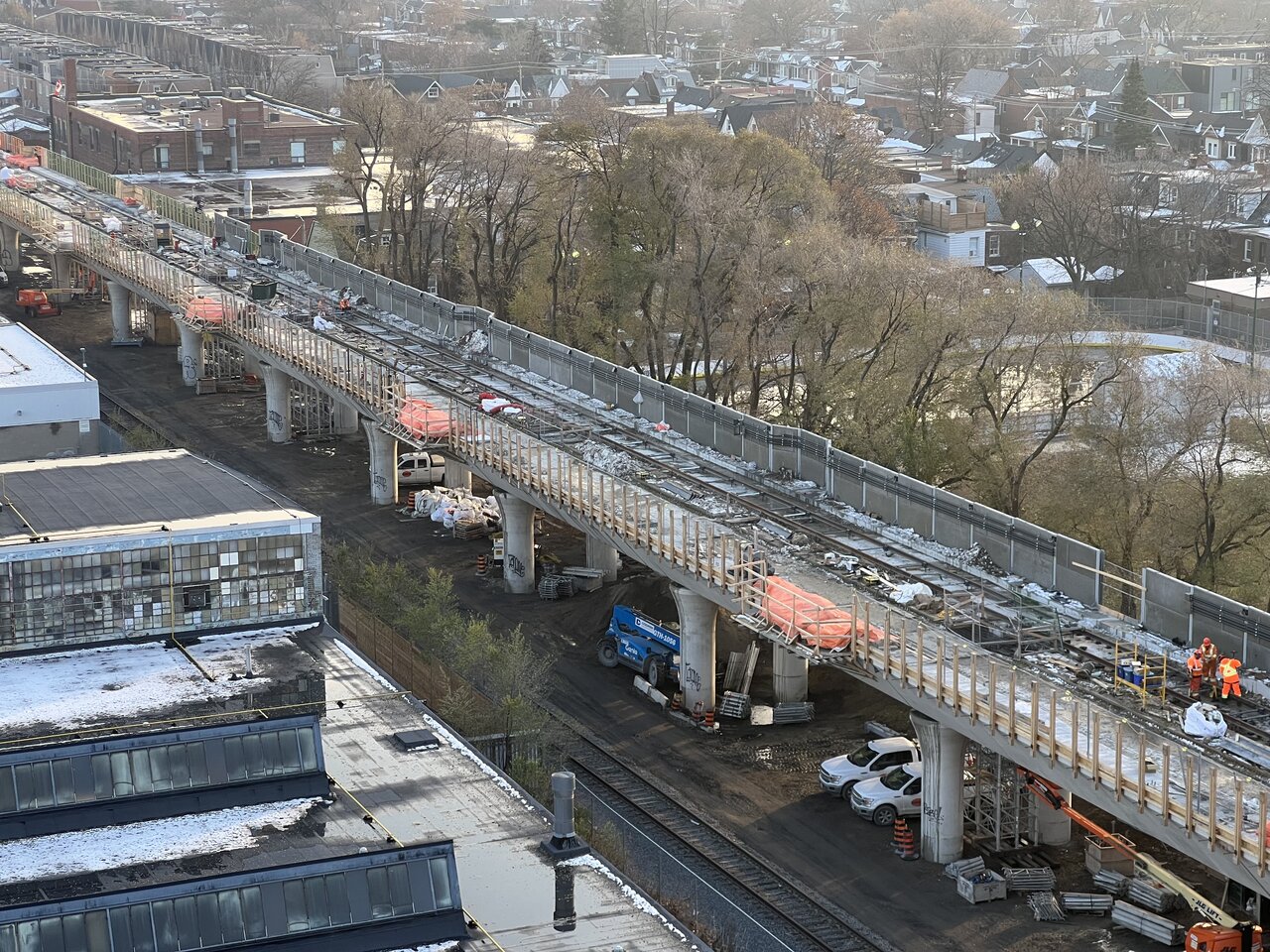

Tracklaying!



Northern Light

Superstar
Member Bio
Joined
May 20, 2007
Messages
23,266
Reaction score
59,092
Location
Toronto/EY

Allandale25

Senior Member
Member Bio
Joined
Oct 19, 2007
Messages
7,907
Reaction score
11,890
I wonder if this means the first train won't roll on this in December? Although I guess there are a few days left.
