Wait, I thought the whole Stouffville Line will be electrified, not just south of Unionville?!

Electrification doesnt require grade separation.

The entire line will be electrified but past Unionville the train frequency will drop.

Grade sep is for very frequent service. You can't have crossing gates dropping every 2.5 minutes for 5 minute service in each direction.


Krypto98

Active Member
Member Bio
Joined
Jan 19, 2019
Messages
273
Reaction score
502
Both Stouffville to Unionville and Kitchener to Bramalea will basically be subway systems once the electrification with EMUs is complete. Pretty awesome.
Bramalea still has the Scarboro Street crossing between itself and Union

Then even between Mount Pleasant and Bramalea its just Mill Street and John Street


robmausser

Senior Member
Member Bio
Joined
Dec 16, 2013
Messages
3,567
Reaction score
5,210
Bramalea still has the Scarboro Street crossing between itself and Union

Then even between Mount Pleasant and Bramalea its just Mill Street and John Street

Last I heard they were going to close Scarboro street.

Kitchener Line benefits from being an active mainline for much of its life, so much of the grade separations are done.

Its a common problem: the least used lines like Stouffville and Barrie, which were branch lines and almost abandoned, mean that the GO trains have basically complete dedicated tracks; but a ton of at-grade crossings because well, the lines were never used much to warrant separation in the past.

The biggest problem with 'subway like' service to Mount Pleasant, is that the tracks are owned by CN. No electrification allowed, and mixed freight.

Last edited:

stevensontransit

New Member
Member Bio
Joined
Aug 17, 2020
Messages
58
Reaction score
36
"This is every existing level crossing, except for one: Finch Avenue. Finch was previously planned to be grade separated as part of the new Finch East station, but that project was put on hold when the Ford government came in and I'm not sure of its status at the moment."
Finch is another busy street so hope they plan a grade separation there.


reaperexpress

Senior Member
Member Bio
Joined
Nov 20, 2009
Messages
2,263
Reaction score
2,682
Location
the original Holland Marsh
Let's hope these road under rail crossings will have adequate/proper drainage, seeing how severe rainfall becomes more frequent events.
and proper separated bike lanes
By "proper"ly, we mean more grade level with the sidewalk than the auto lanes.

Sure, we could hope for separated bike lanes... Or we could just look at the proposed designs on the website.

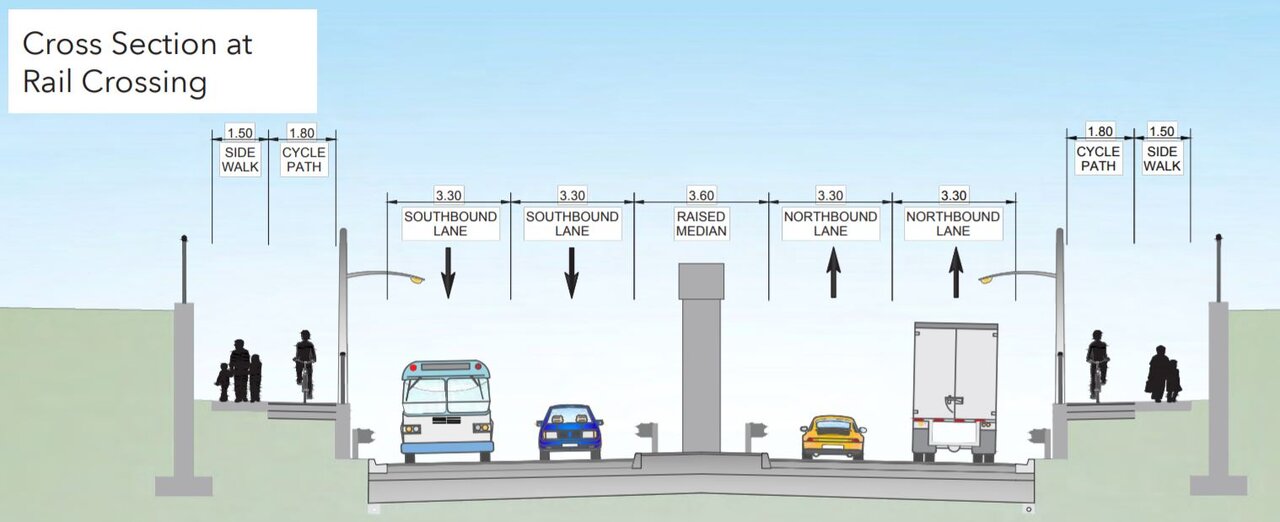

Kennedy Road:

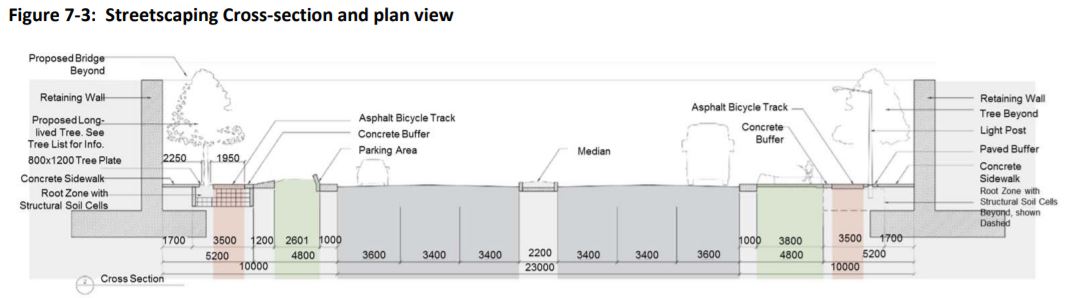

Steeles Avenue (from this report; cycle path in red):

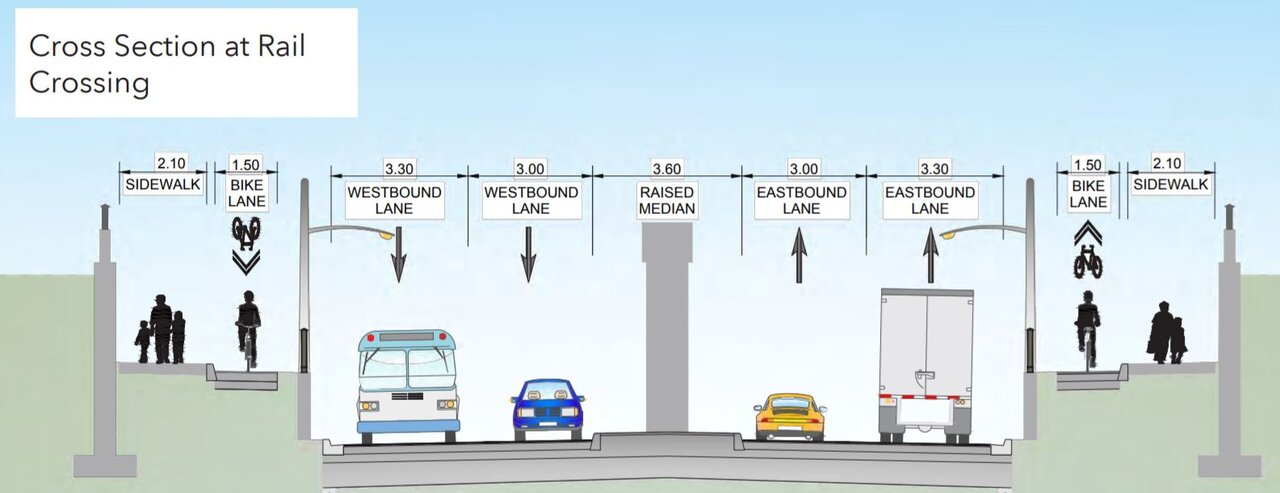

Passmore Avenue:

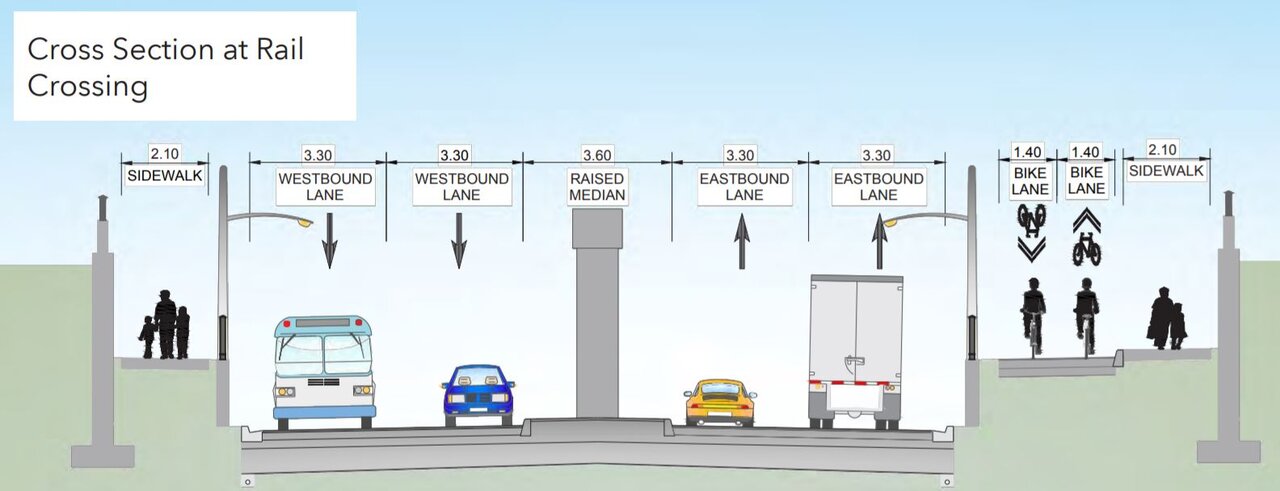

McNicoll Avenue:

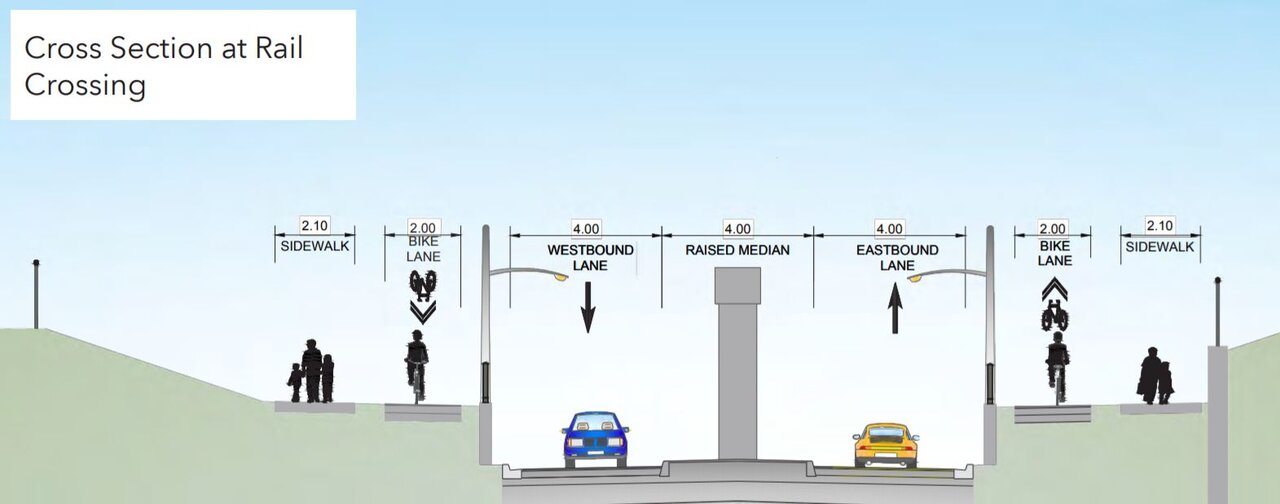

Huntingwood Drive:


The other crossings have no proposed cycling facilities.


W. K. Lis

Superstar
Member Bio
Joined
Dec 24, 2007
Messages
21,028
Reaction score
10,883
Location
Toronto, ON, CAN, Terra, Sol, Milky Way
Sure, we could hope for separated bike lanes... Or we could just look at the proposed designs on the website.

Kennedy Road:
View attachment 266011

Steeles Avenue (from this report; cycle path in red):
View attachment 266007

Passmore Avenue:
View attachment 266010

McNicoll Avenue:
View attachment 266009

Huntingwood Drive:
View attachment 266008

The other crossings have no proposed cycling facilities.

The speed limit on the bike lanes should be limited to 30 km/h. So that e-bikes, e-scooters, and motorized wheelchairs could also use them. (The average Tour de France cyclist does 40 km/h. Those racers should use the auto traffic lanes.)

Last edited:

reaperexpress

Senior Member
Member Bio
Joined
Nov 20, 2009
Messages
2,263
Reaction score
2,682
Location
the original Holland Marsh
The speed limit on the bike lanes should be limited to 30 km/h. So that e-bikes, e-scooters, and motorized wheelchairs could also use them.

Those vehicles are already limited to 30 km/h anyway so it's a non-issue.


smallspy

Senior Member
Member Bio
Joined
Nov 27, 2009
Messages
4,680
Reaction score
5,157
Does anyone happen know what clearance they're aiming for on the Stouffville and Barrie lines? I seem to recall that the recommended clearance above top-of-rail was based on electric wires over double-stacked container trains, but given that the Barrie and Stouffville lines would only ever be frequented by local shunter services it would presumably be possible to use a smaller structure gauge to merely accommodate GO's own bilevels and single-stacked containers.

The clearances will be the same everywhere under the catenary, save for under the trainshed at Union Station.

They still need to account for excess clearance freight equipment - autoracks or double-stacks aren't the only over-sized cars.

Dan


Allandale25

Senior Member
Member Bio
Joined
Oct 19, 2007
Messages
6,896
Reaction score
9,479

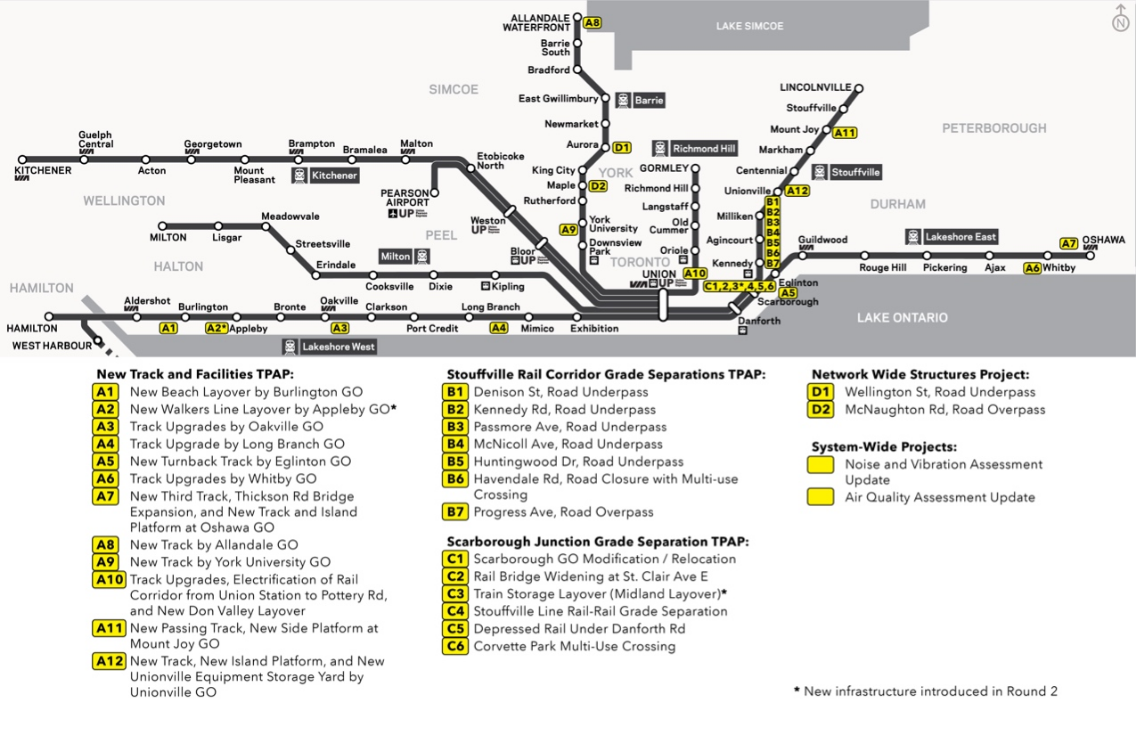

Interesting re A10 on the map. I hadn't realized this when seeing the PDF: " Metrolinx spokesperson Anne Marie Aikins said the agency has already revised its original proposal in response to public concerns, including by relocating the layover site from a part of the valley south of the viaduct, which the city deemed environmentally sensitive. It has also reduced the number of tracks required from three to one." (emphasis added)

The article does't mention it's using an existing (but not actively used) rail corridor.



Northern Light

Superstar
Member Bio
Joined
May 20, 2007
Messages
16,584
Reaction score
35,411
Location
Toronto/EY
Interesting re A10 on the map. I hadn't realized this when seeing the PDF: " Metrolinx spokesperson Anne Marie Aikins said the agency has already revised its original proposal in response to public concerns, including by relocating the layover site from a part of the valley south of the viaduct, which the city deemed environmentally sensitive. It has also reduced the number of tracks required from three to one." (emphasis added)

The article does't mention it's using an existing (but not actively used) rail corridor.


I have commented on that thread, that I would support this project being used to relocate the Bala Sub from where the Don Branch begins to just north of Pottery Rd.

This would solve a big part of GO's Flooding issues, and would also allow restoration of more than 5ha (12.5 acres of land.

On top of which it would allow pedestrian and cyclist access to the valley from Rosedale Valley Road and opposite the Brickworks with the choice of running a parallel trail on the west side of the river, or crossing over with bridges to the existing east side trail.

****

In a formal submission, I also suggested they could reforest the DVP embankment (from the DVP down to the valley bottom) as an off-set measure.


Allandale25

Senior Member
Member Bio
Joined
Oct 19, 2007
Messages
6,896
Reaction score
9,479
Interesting re A10 on the map. I hadn't realized this when seeing the PDF: " Metrolinx spokesperson Anne Marie Aikins said the agency has already revised its original proposal in response to public concerns, including by relocating the layover site from a part of the valley south of the viaduct, which the city deemed environmentally sensitive. It has also reduced the number of tracks required from three to one." (emphasis added)

The article does't mention it's using an existing (but not actively used) rail corridor.

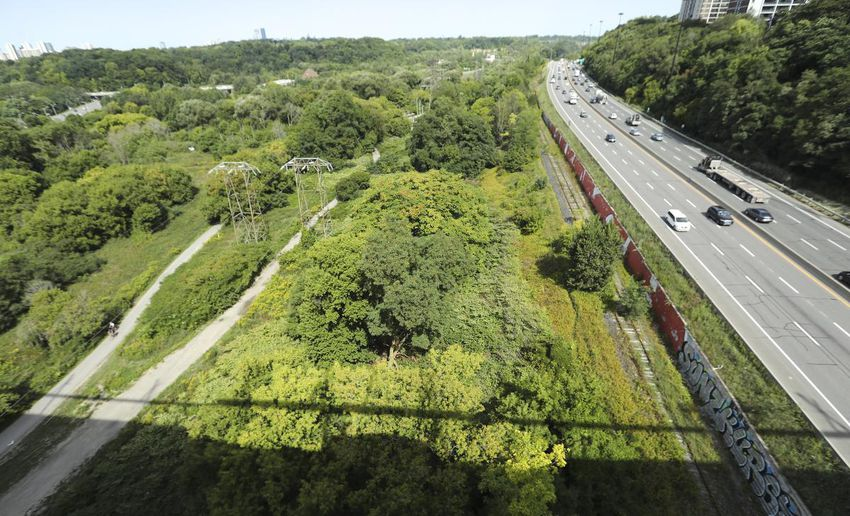

Looks like the article has been updated with a site plan map (created by the Star I assume) and a picture taken by the Star of the location. The site plan map doesn't show the multiuse trail (or maybe it does and they just didn't label it).
